Wraith Dart - Feb 14, 2009 |
Back and forth between the model and references. Small changes in one area affects other areas. |

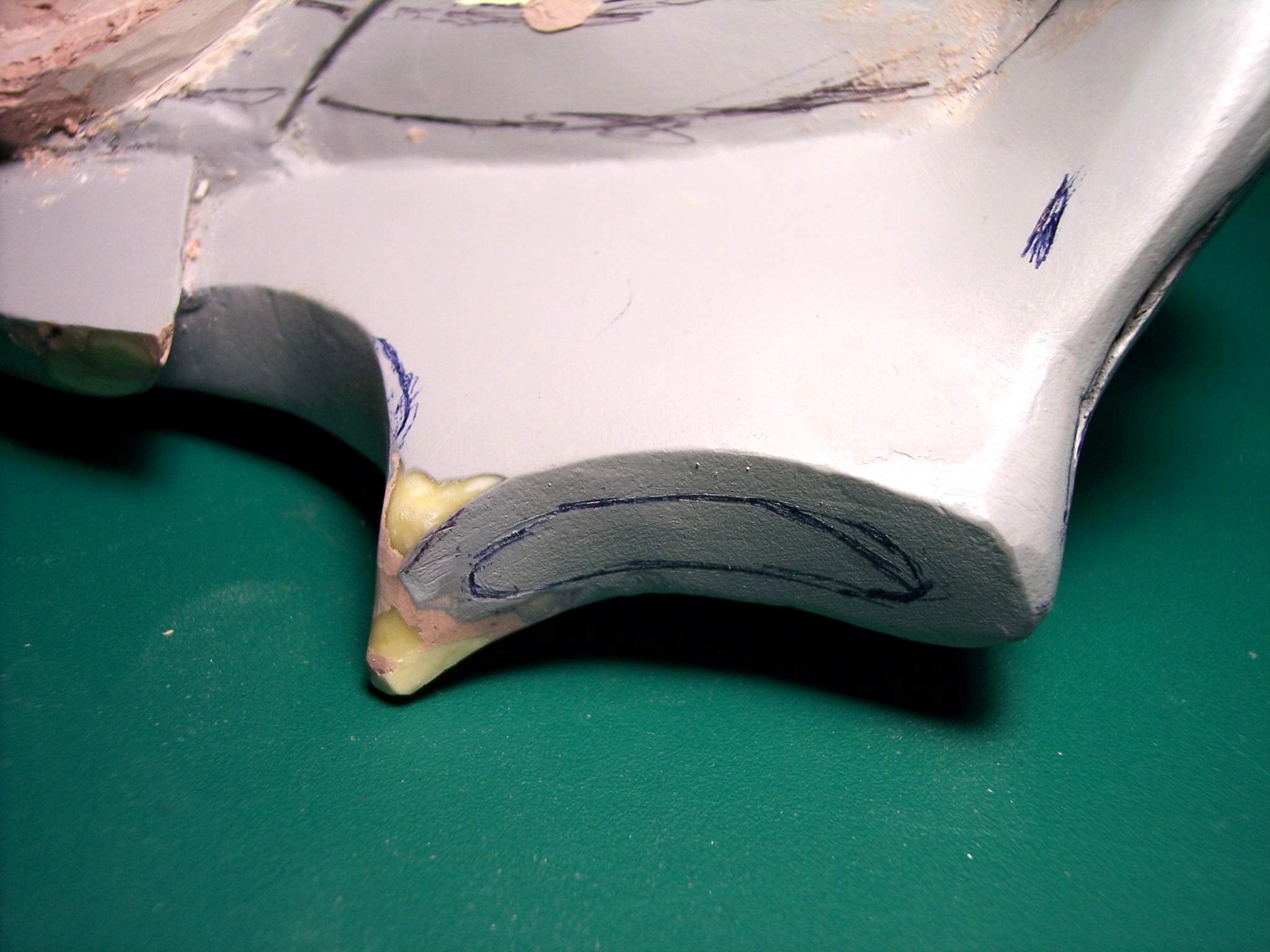

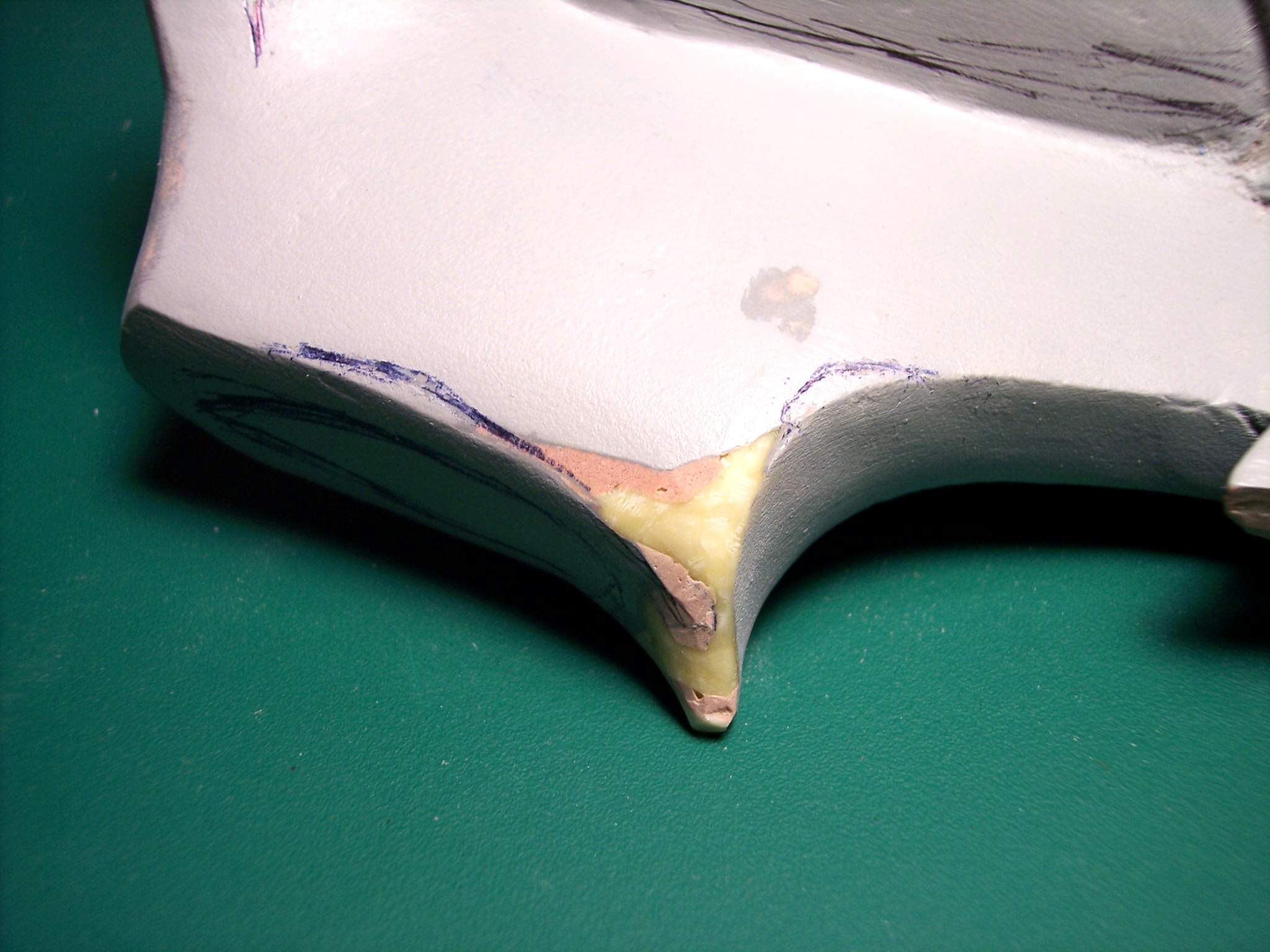

Pen marks show areas where I have to cut back to get the correct profile |

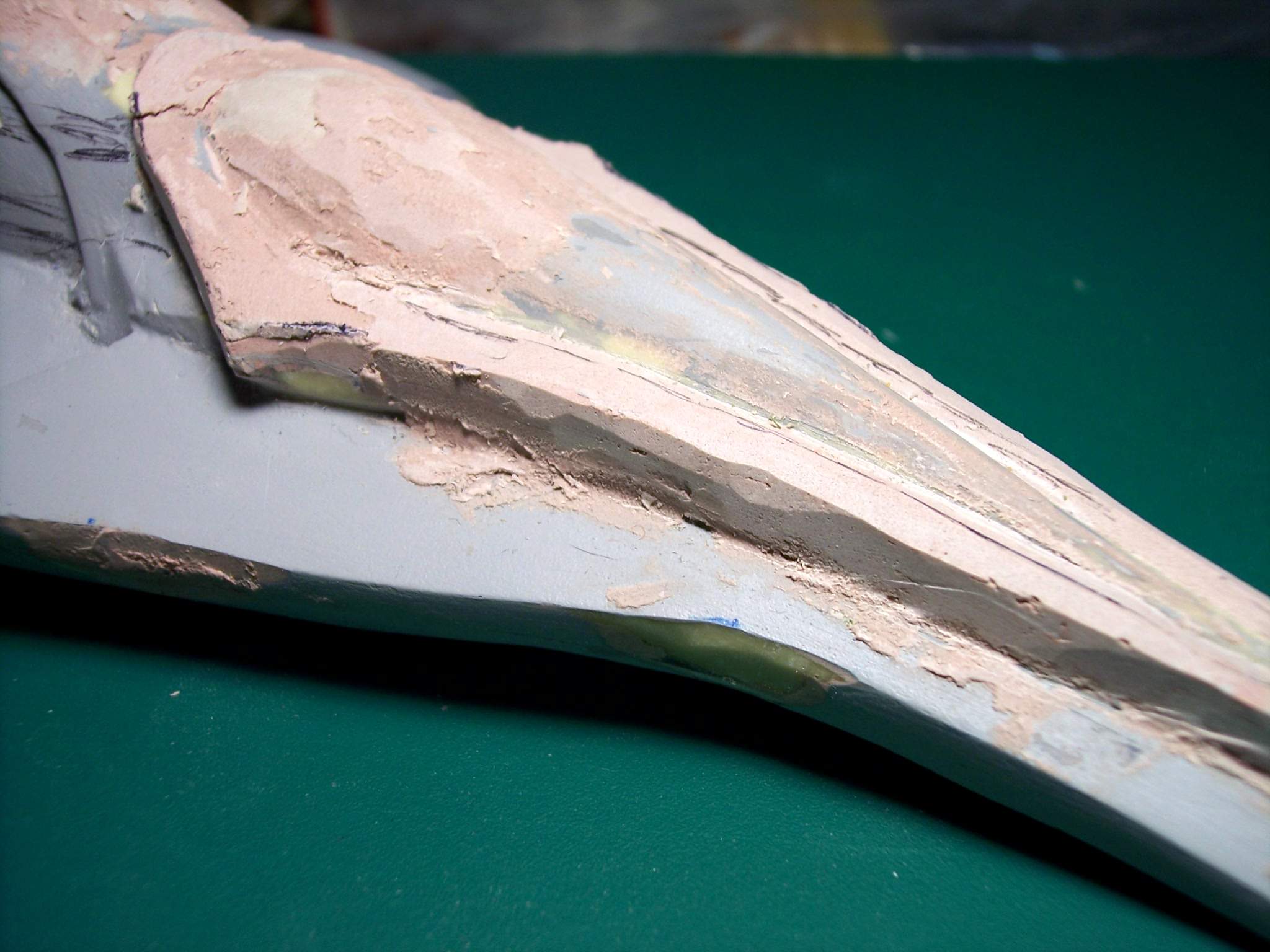

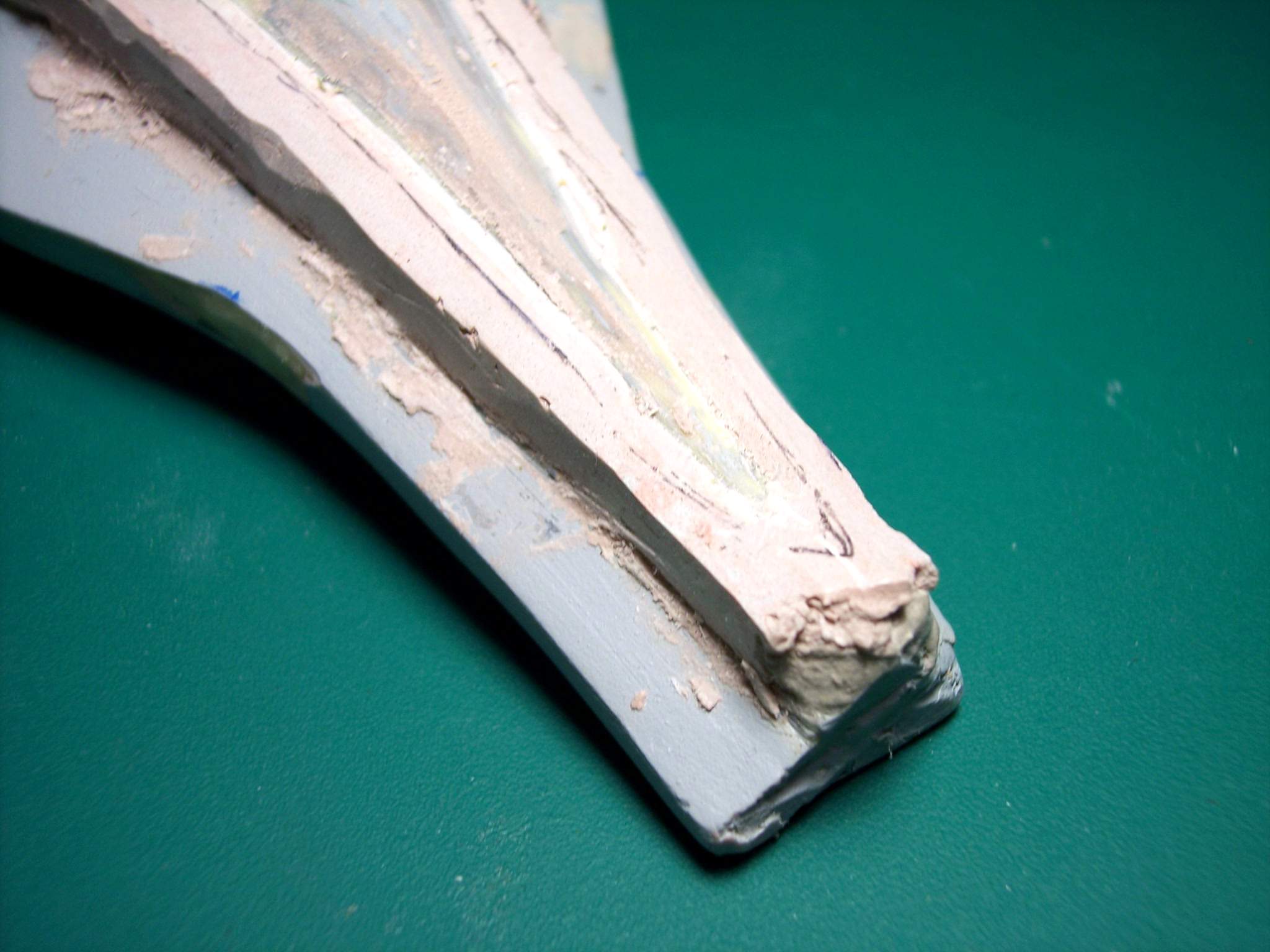

Hard to see but there is a recessed area between the main body and the side winglet |

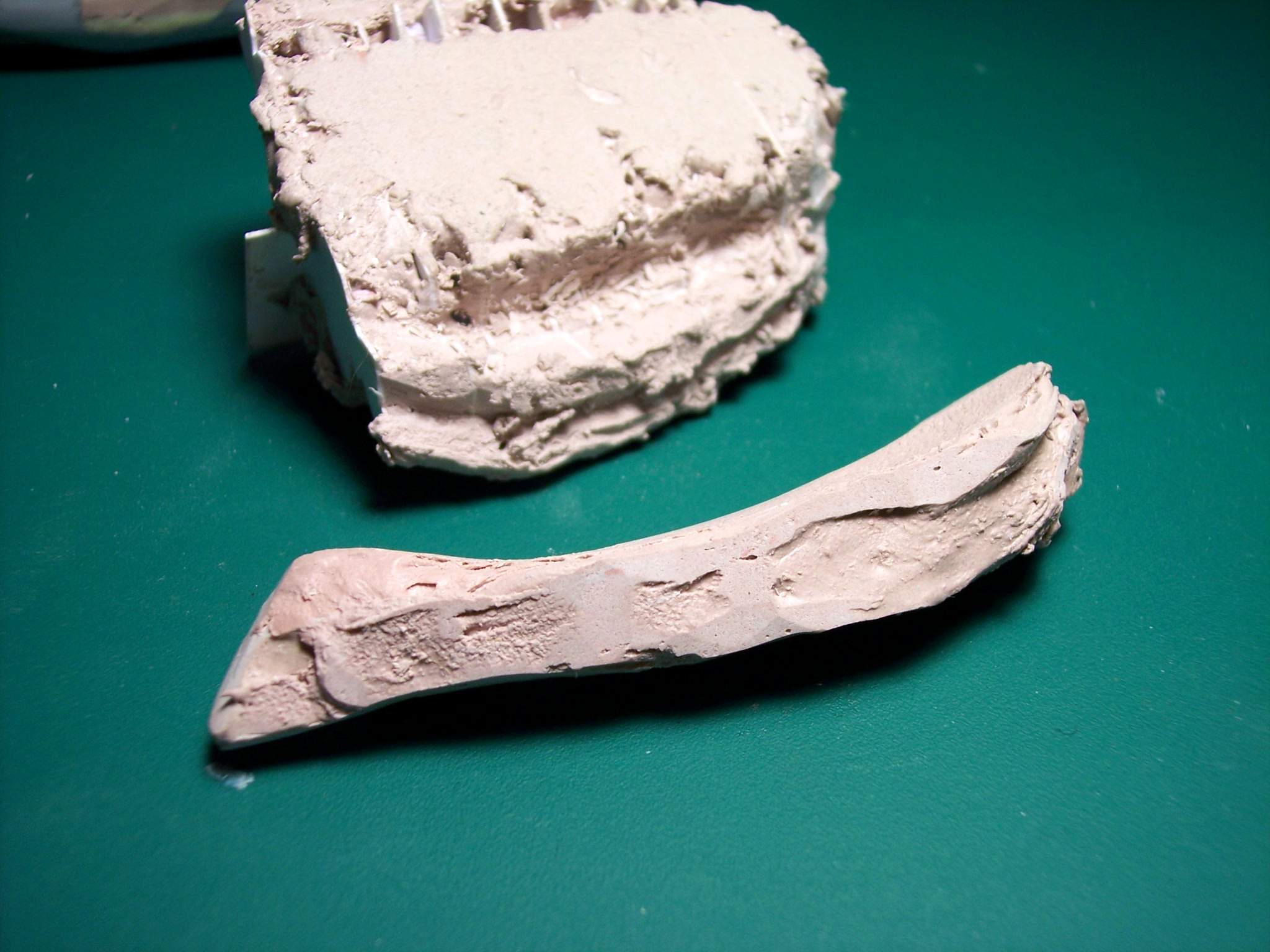

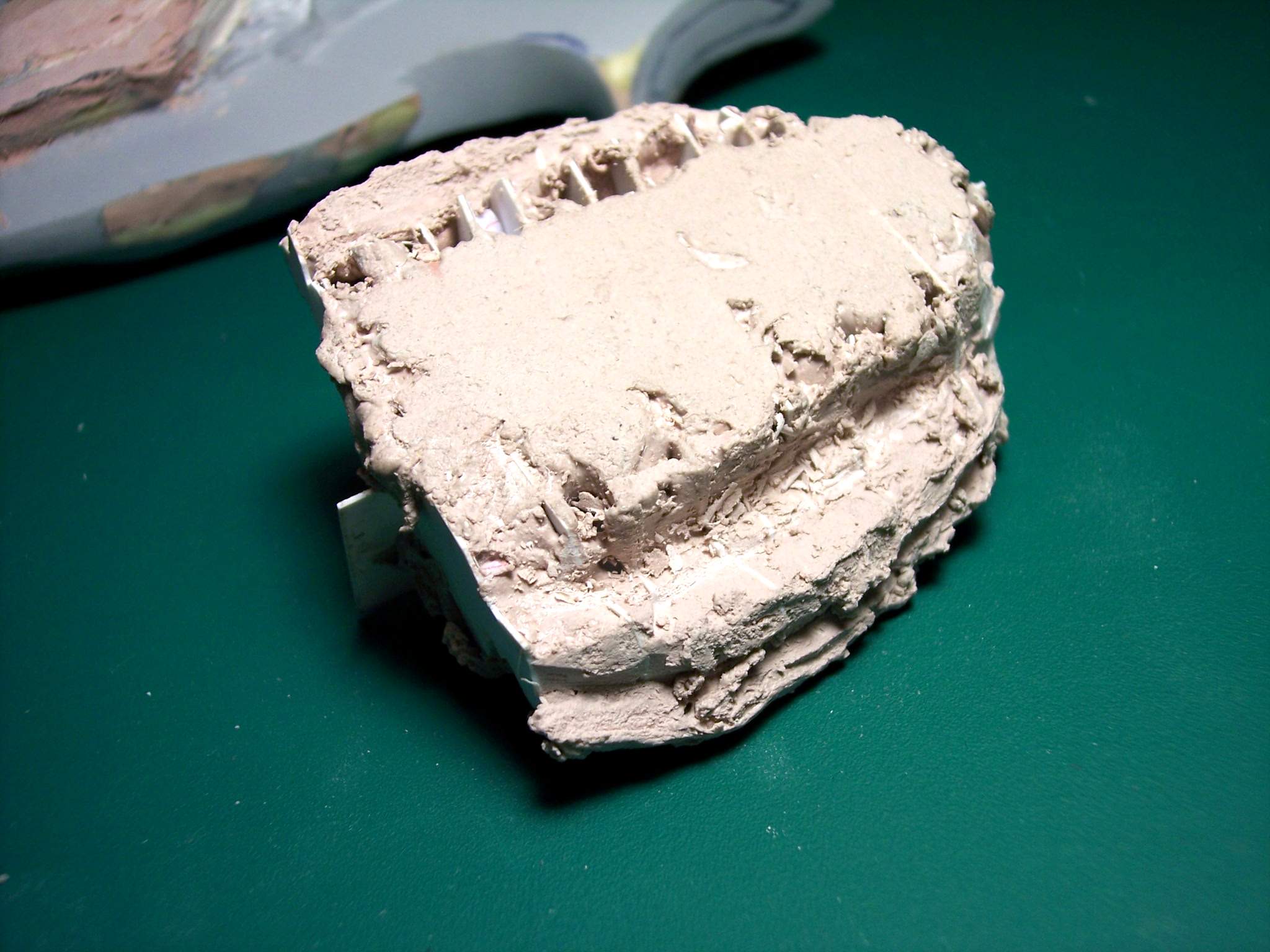

I was getting frustrated trying to replicate the side little flares so I went back and did the cross sections again to get the basic shape. It looks very rough but at least I know it is correct even though it looks like it might not fit. Goes to show how sometimes the eye can be fooled. |
