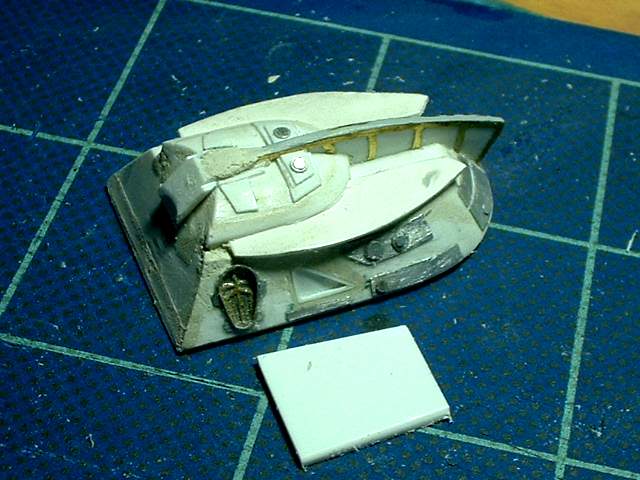

 0122201.jpg Well it turns out the original under shuttle engine detail was off so here I am making a new one. Start with a piece of sheet styrene |

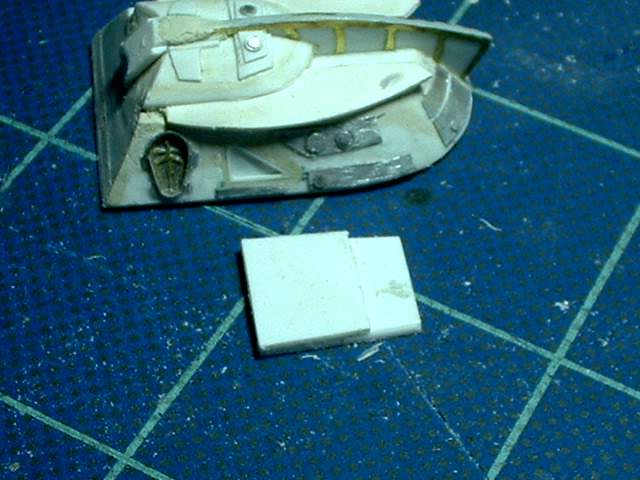

 0122202.jpg Add a second layer to get the front thicker |

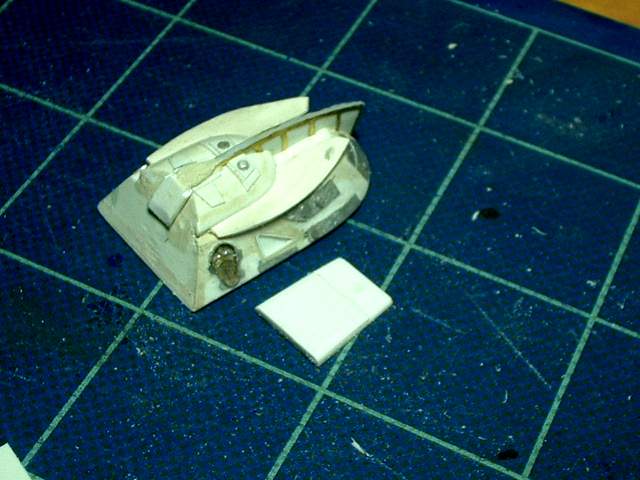

 0122203.jpg Shape that to close to what I want |

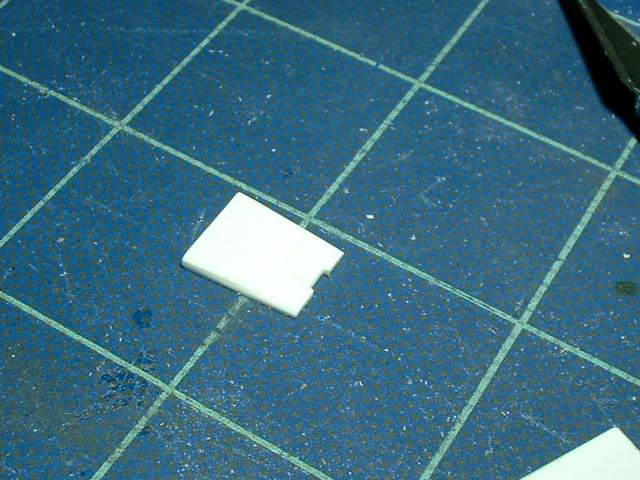

 0122204.jpg The rear section gets a cutout |

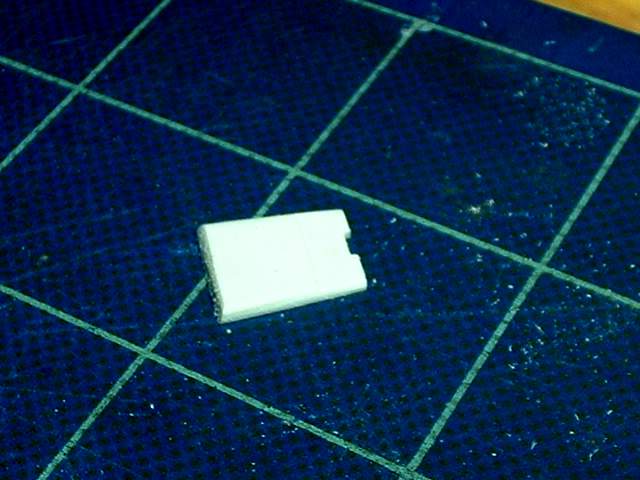

 0122205.jpg The sides are curved and the front is bevelled |

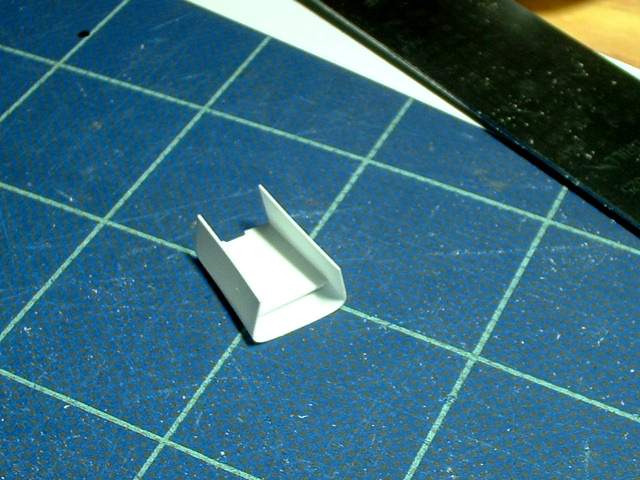

 0122206.jpg A thin sheet is curved around the outside to give us a lip |

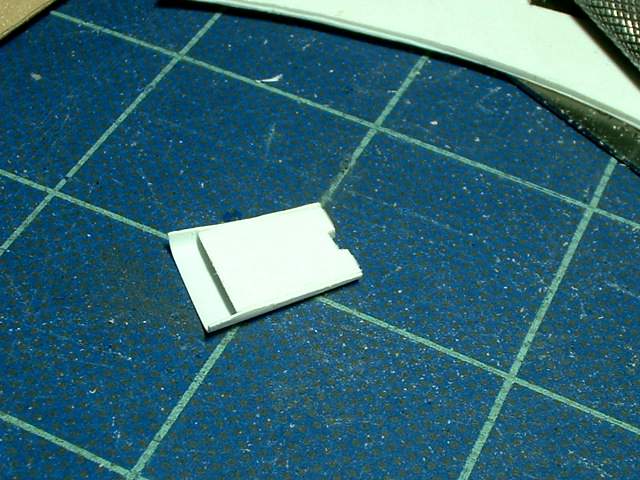

 0122207.jpg The sides are trimmed down but not the ends |

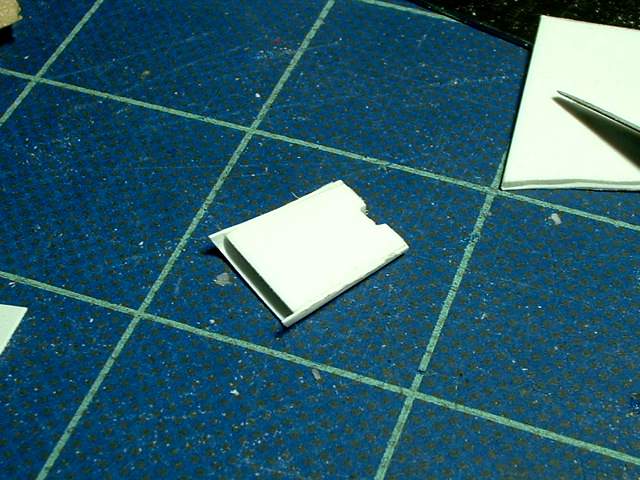

 0122208.jpg Trimming |
 0122209.jpg The front is trimmed to shape |

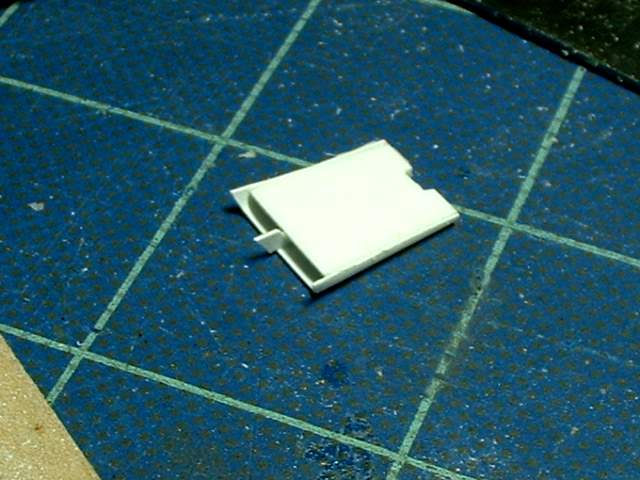

 0122210.jpg Now to add the intake splitters |

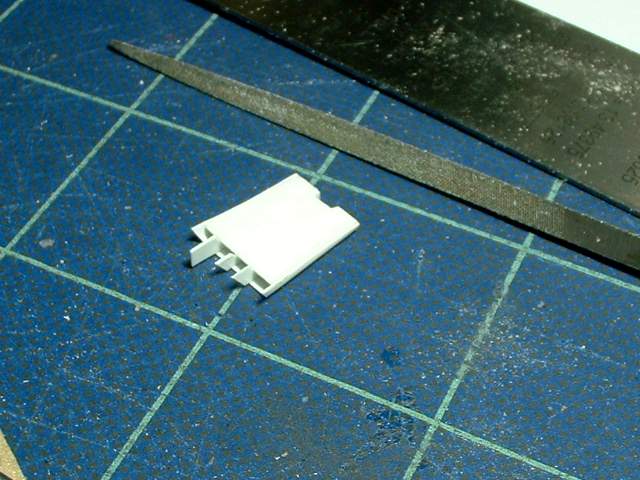

 0122211.jpg The rest of them are added |

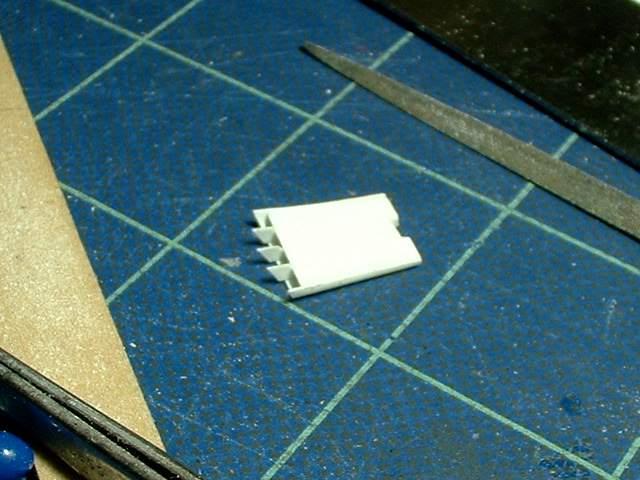

 0122212.jpg Trimmed to remove as much excess as possible. Then set aside to let the glue dry. |
