Serenity - September 30 2006 |

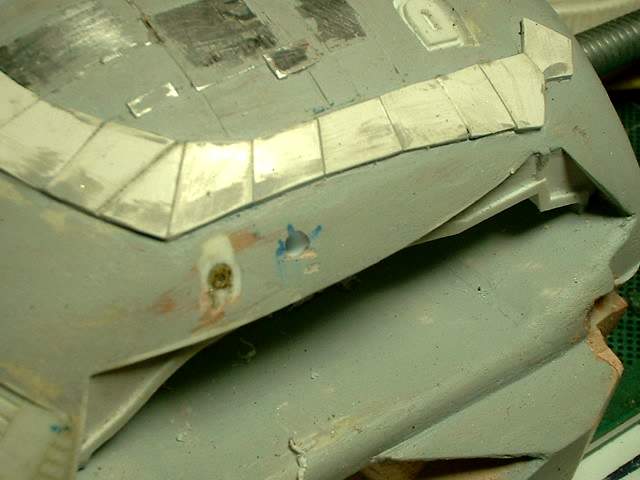

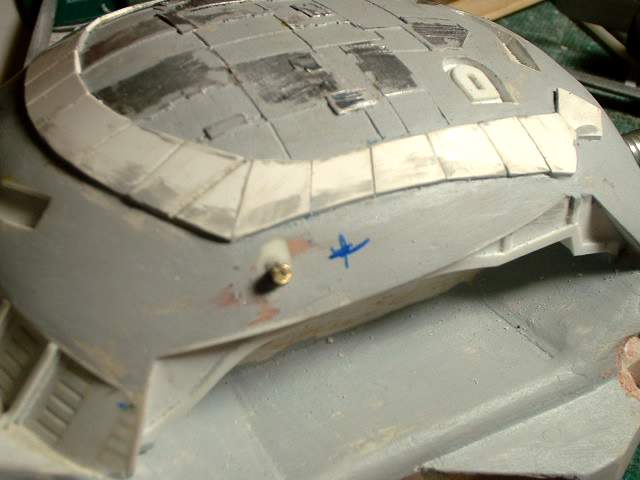

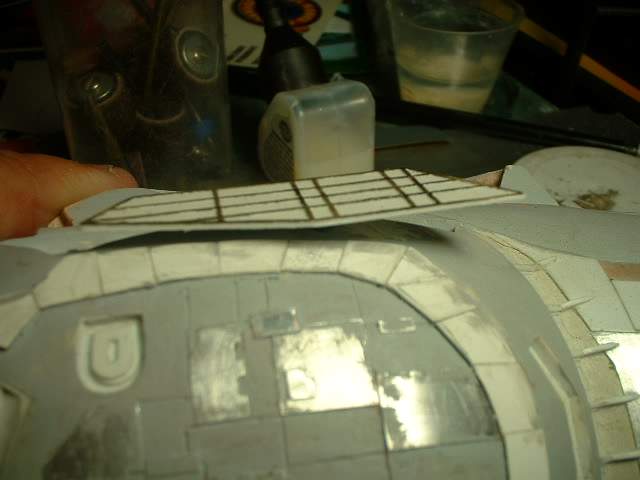

While getting ready to position the large panel I noticed that the original mount is in the wrong location so it had to be moved |

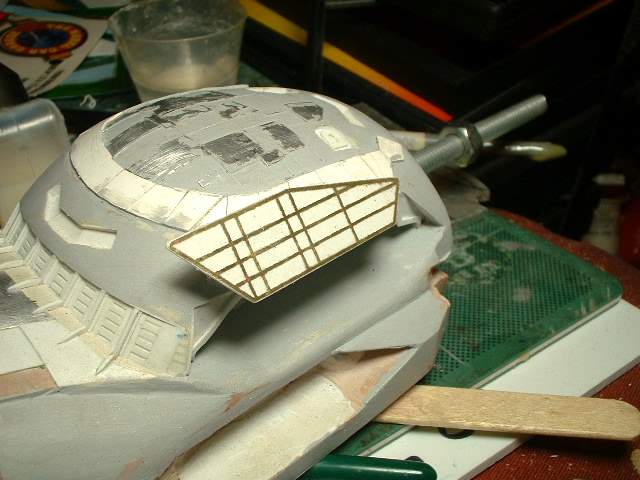

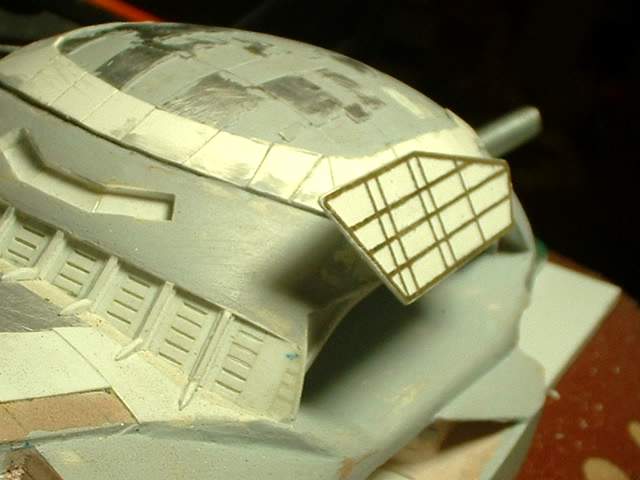

The large panel installed |
Top view |
Front quarter view |

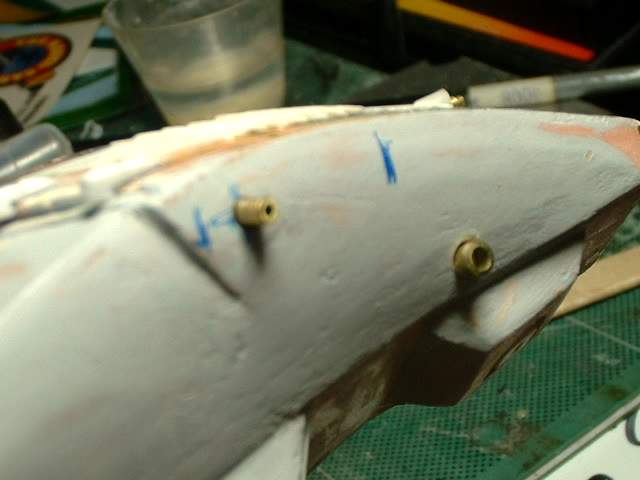

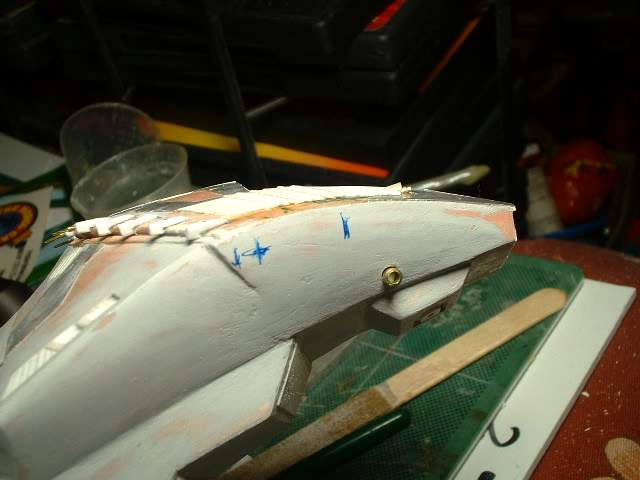

Now the fun ones. Start off with making lots of marks all over the place to try and get the mount in the right place |

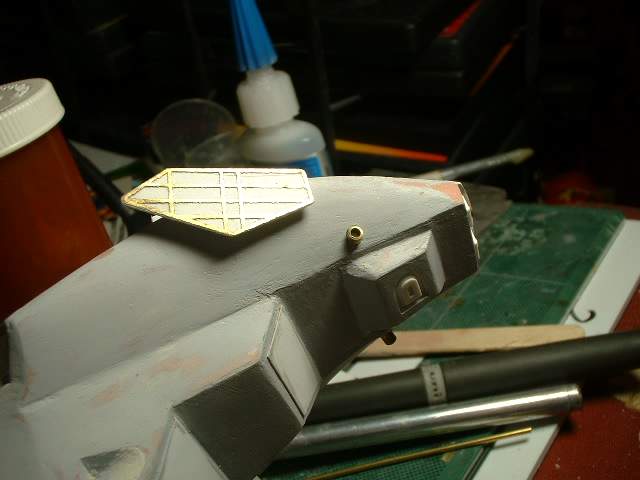

I hope this is right |

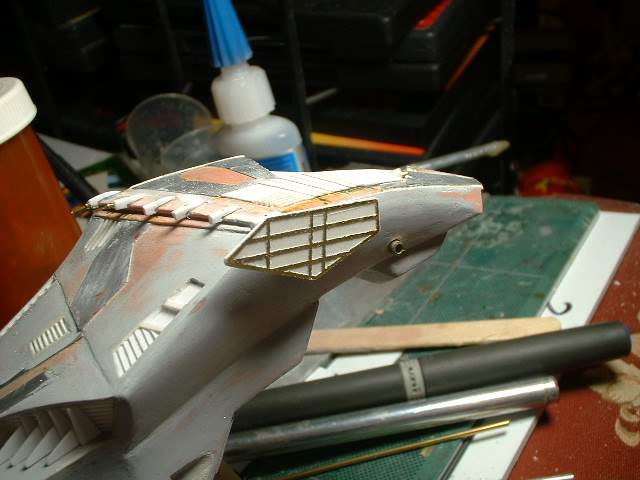

One panel installed |
Another view |

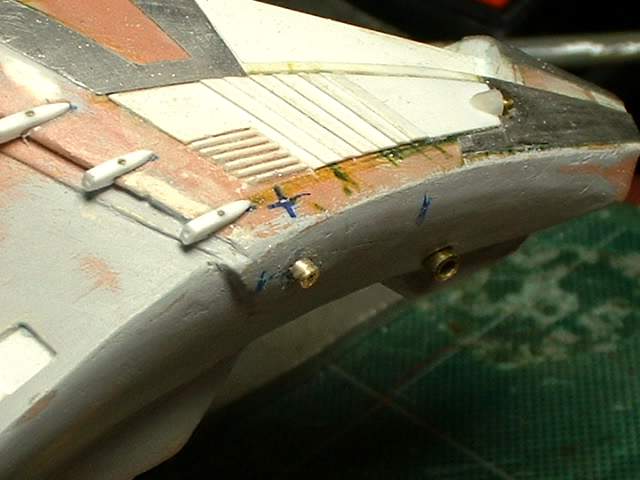

Close up of the marking for the second panel mount |

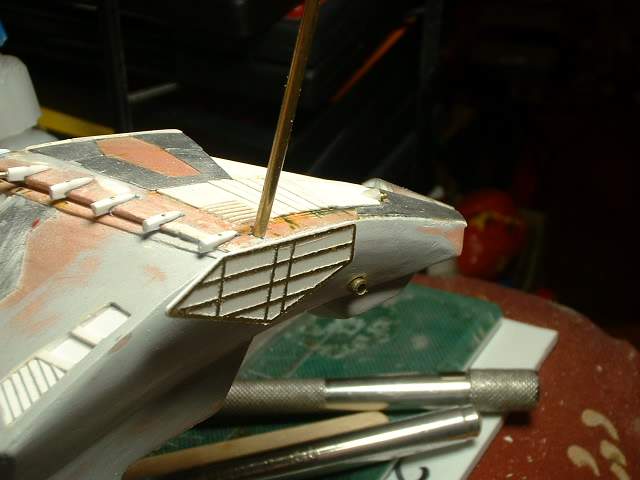

Brass rod check |

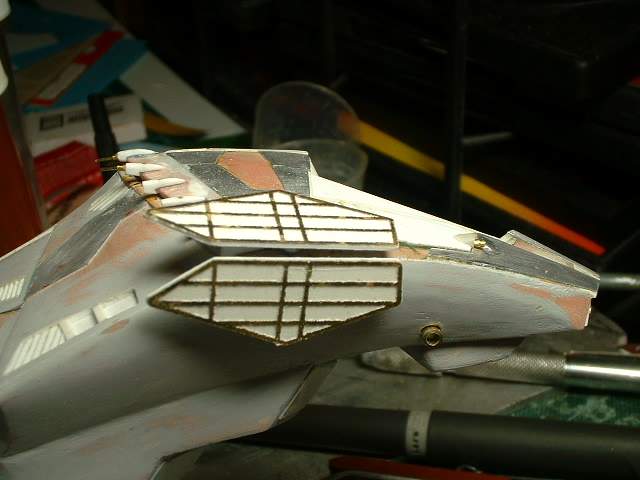

Skipped a few hair pulling sessions with the mounts in the wrong place, too long, wrong angle and they are now done and are even. |

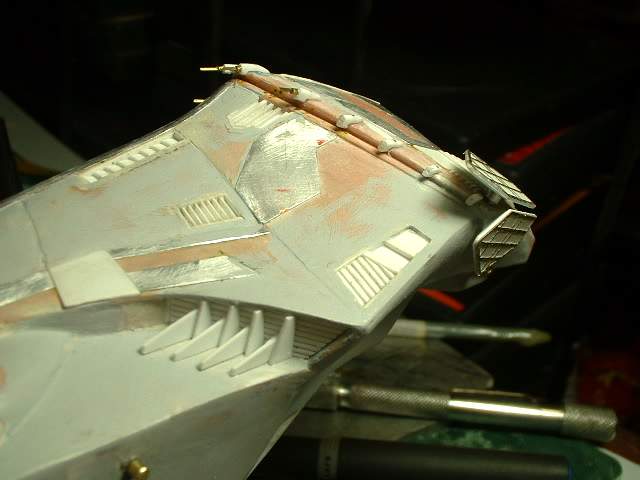

Other view, You can imagine the beginning of the movie where there is a pan around the ship to the front just before the primary buffer panel comes off. |

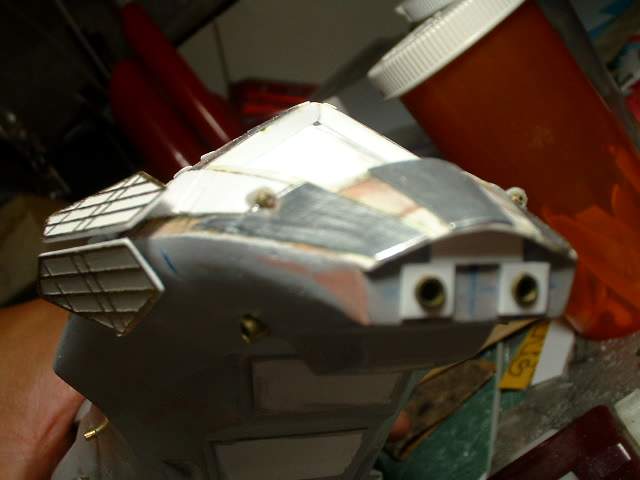

And nose view |
