SERENITY - Dec 23 2005

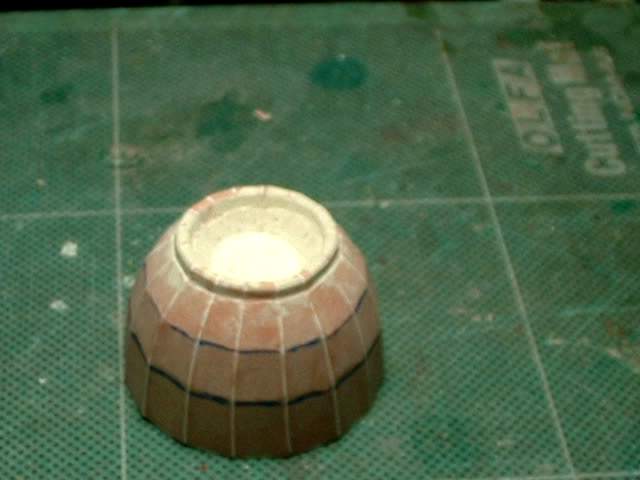

My attempts at cleaning up the inside if the engine intake are not going well so I decide to prime it hoping that will make it easier to spot the mistakes

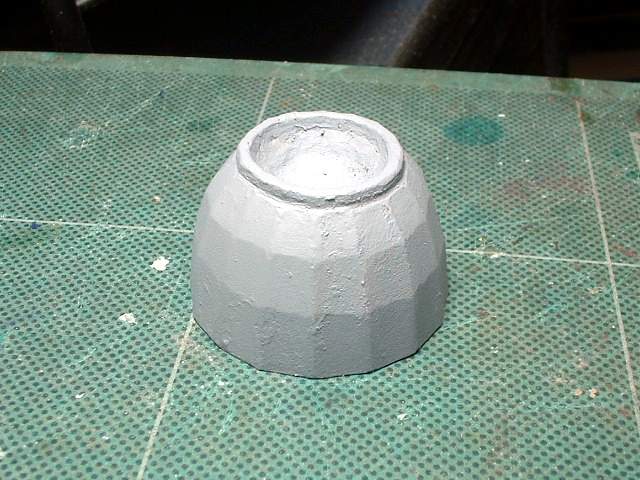

What a mess. The primer spray can decides to spit out goop. The inside still looks terrible and the outside needs to be cleaned up

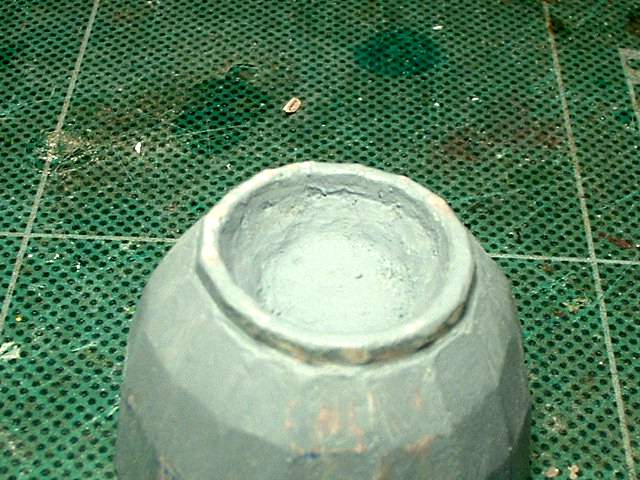

Close up of how terrible the inside is

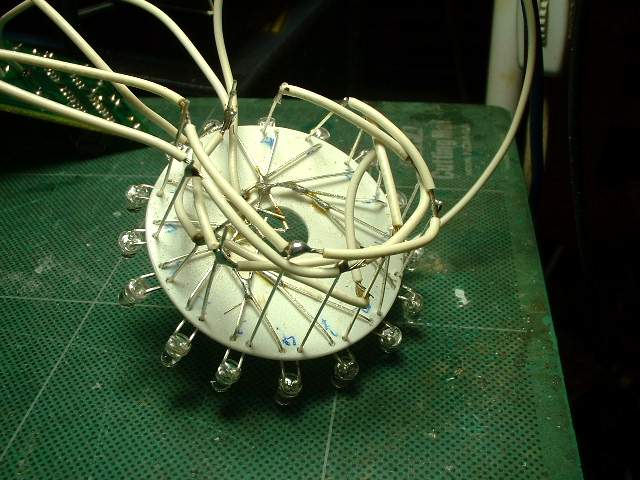

The quick wiring for the LED circuit. A maze

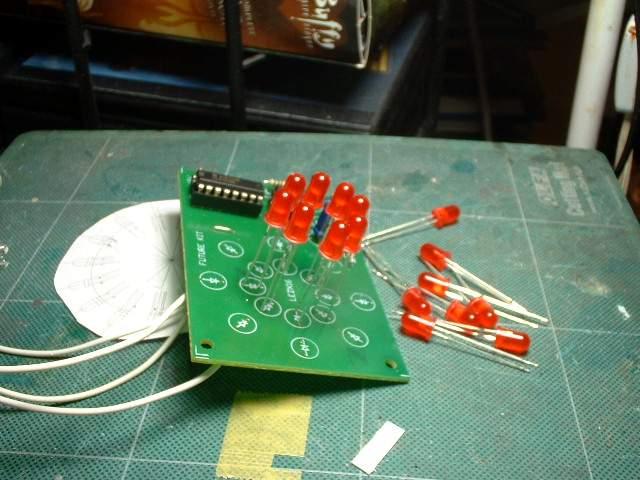

The modified LED board with some of the red LEDs pulled off

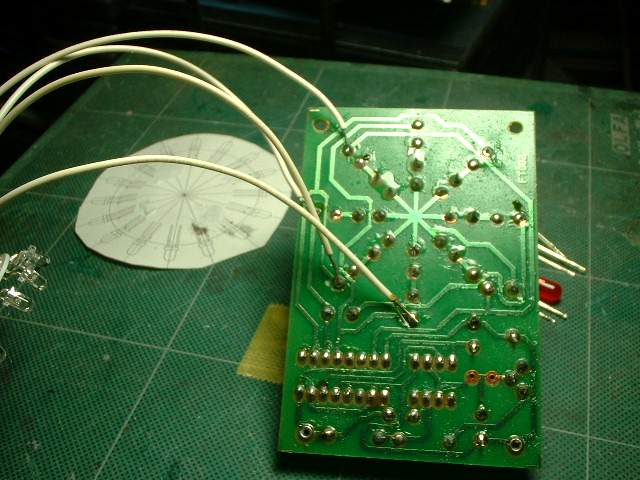

Wiring added to the back

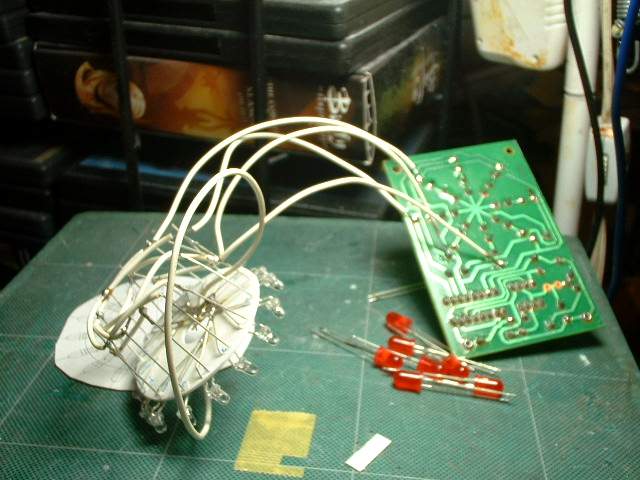

The entire mess back
The front

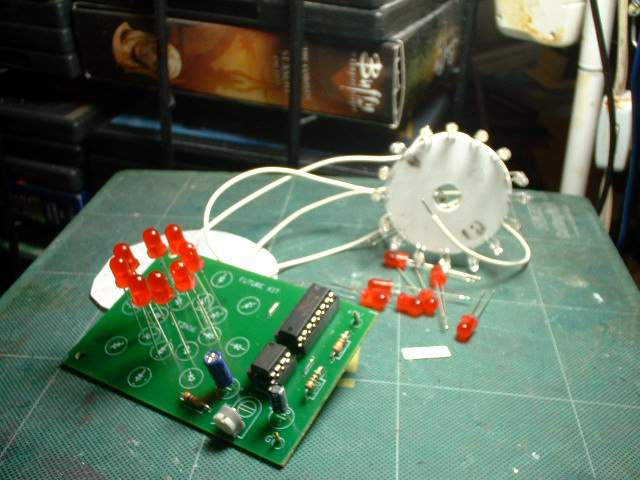

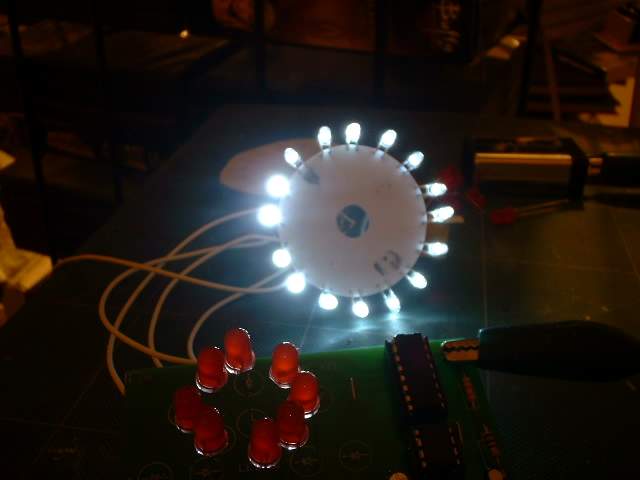

It works. Sort of.
When I was trying to prime the engine intake the spray can does something I have never seen it do before. It sprits out gook and sort of ruins the finish of the part. So I try and pull as much of it off as I can by hand. I do a second respray and hope that is OK.
I have left the lights as it can be said that it is not really needed for the finished model. If I do a lot of other stuff on the model I may return to do a bit more on it. When playing with the lights the spacing between the LEDs is too big and I can add 16 more LEDs to make it look smoother. I am not sure if this circuit board can handle the increased load. Hence my looking at the original board and the PIC programmer.
