SERENITY - Sept 2 2005


Back to the engine and the flap things that open every so often. Well I cut up part of one of the castings and ground it down to thin it but I would never get it thin enough. Since there was some cut out details also I felt I had to do a vac form of the part

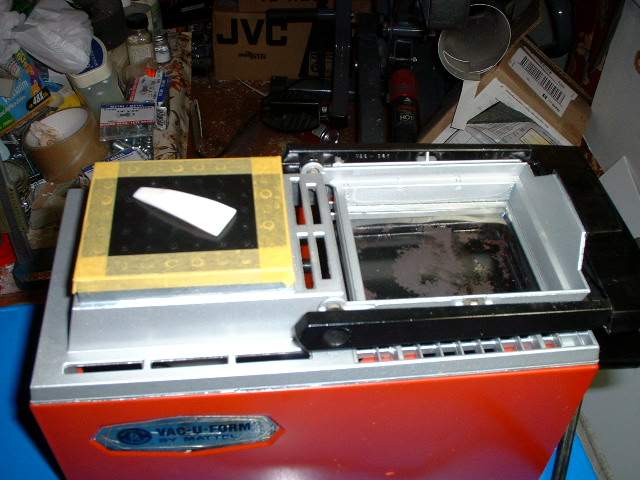

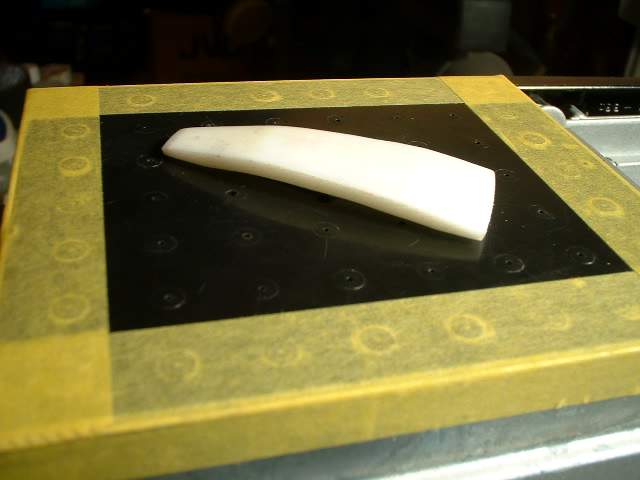

Here is the part on the Mattel vac-form table. It is a toy but it does work for little things

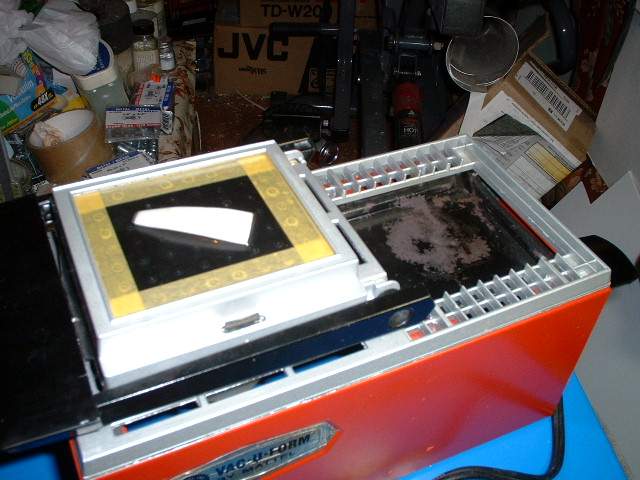

Another view of the clear sheet being heated

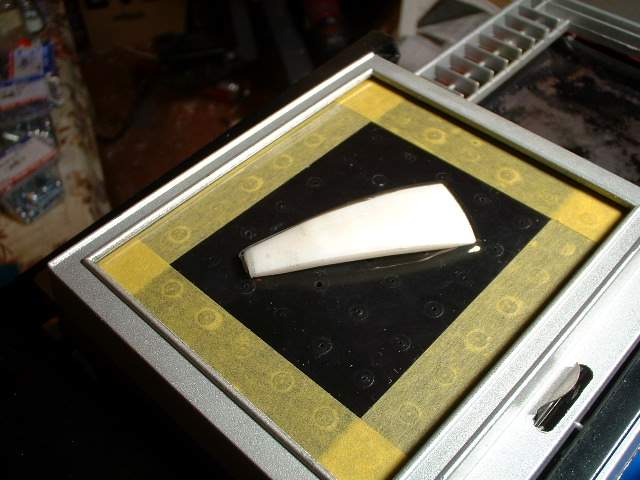

Puled over and the suction applied

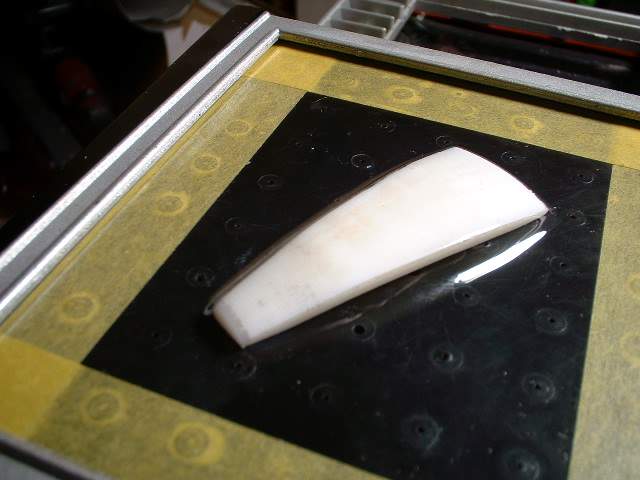

Another view

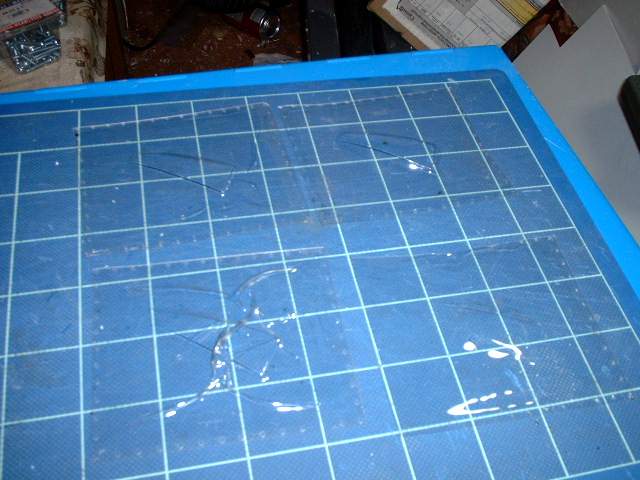

It took 4 tried to get 2 good ones

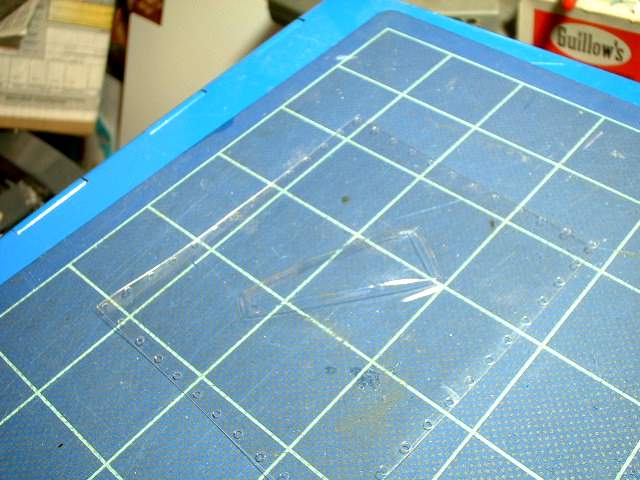

One of the 2 good ones

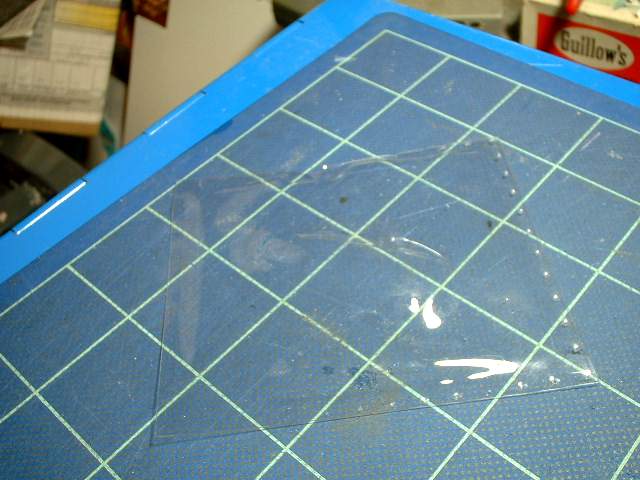

The first one lost vacuum and was not heated up enough

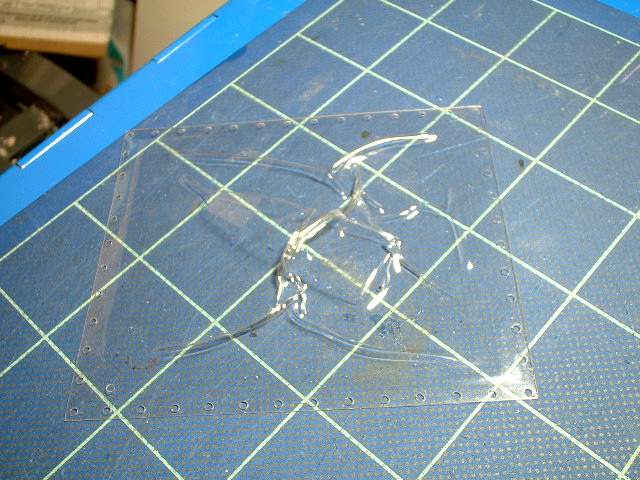

The second one was heated up too much and is wrinkled

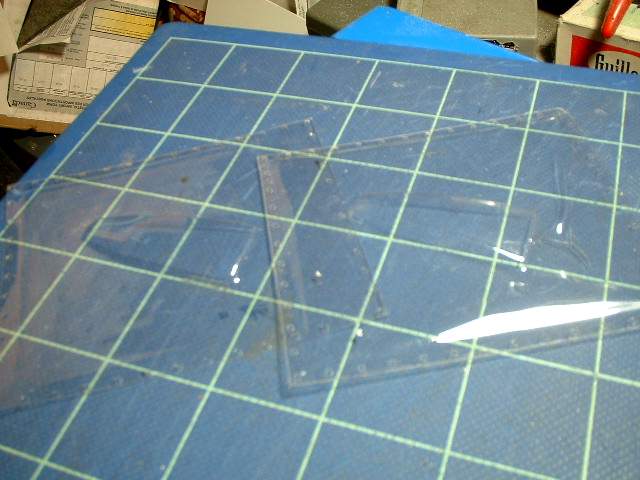

the 2 good ones
