SERENTY - July 31 2005
Cutting out the internal structure for the wings and the shuttle. The brass rod is inserted so that I can remove and install the wings. Not sure how I can use this in the moulding process. If I include the wing in the body this will make the mould quite large and costly.
Another view

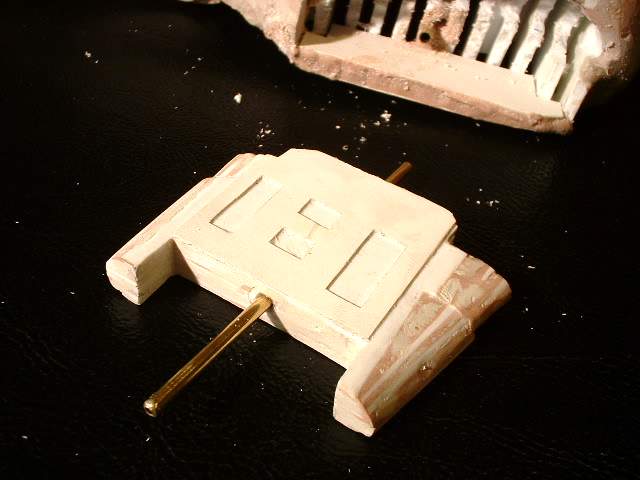

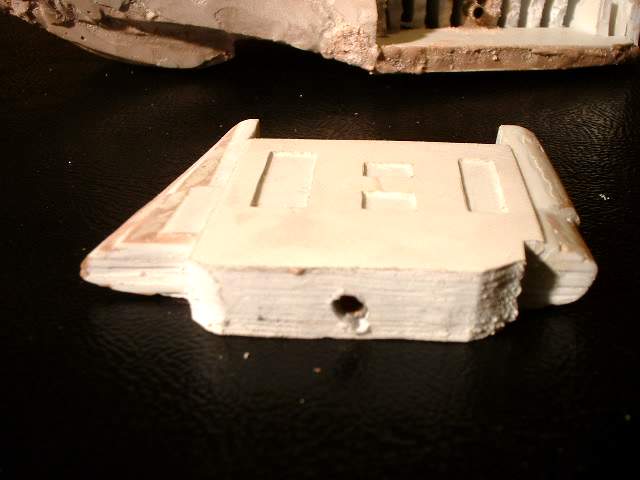

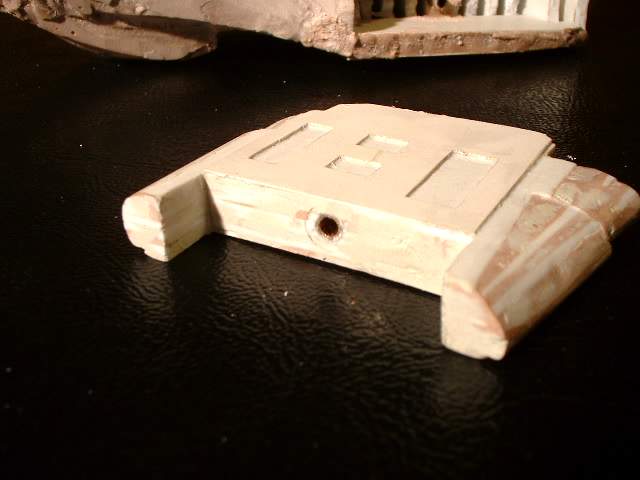

The wing with a hole drilled into it and a brassrod glued in
The other side

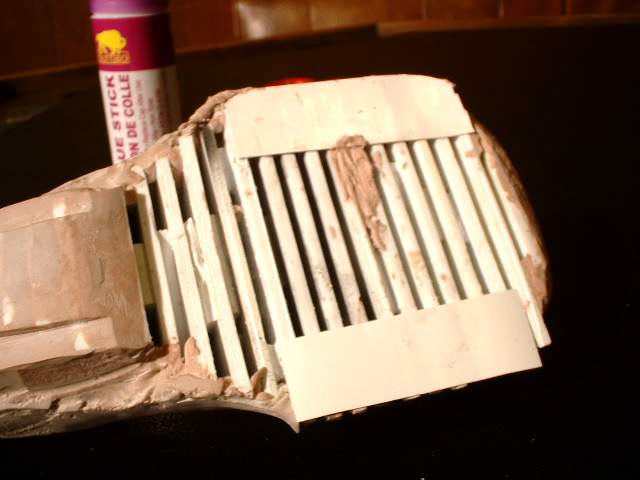

The underside with some strip styrene installed for the puttying

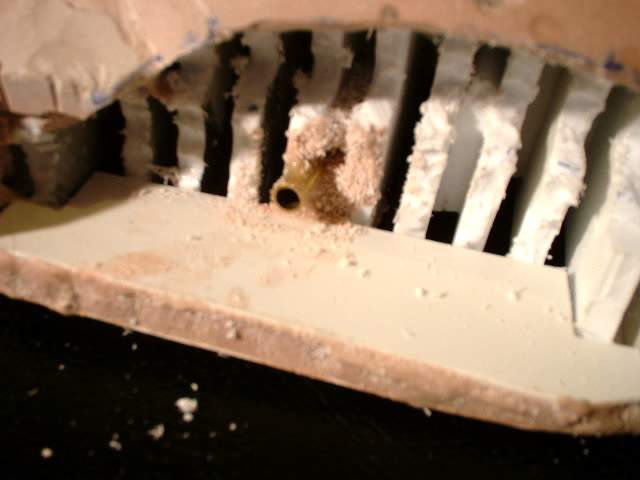

The brass rod which will be used to install the wing and hopefully to allow the side engines to rotate

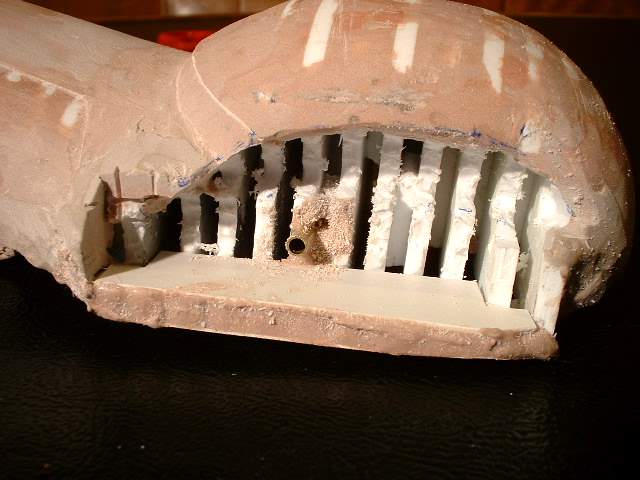

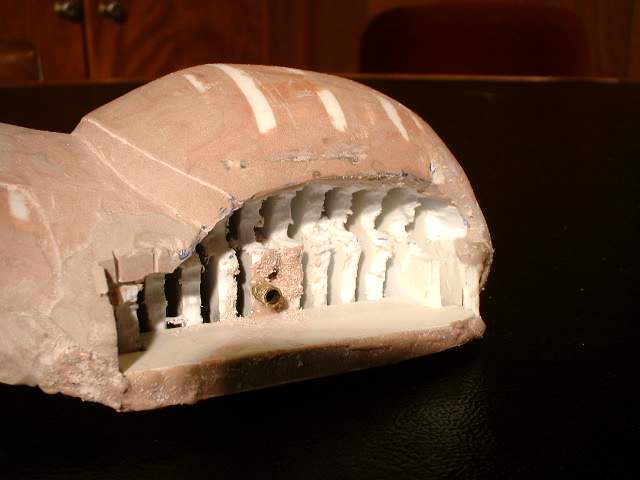

Close up with the lower section also sectioned off

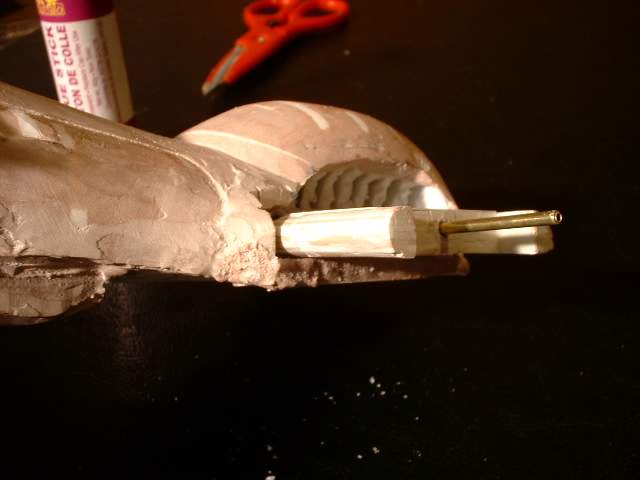

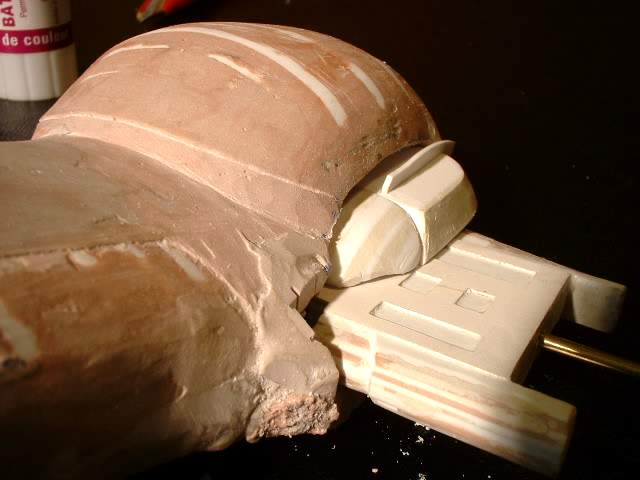

Test fitting the wing
Making sure the wing was level. Now I have to match up the other sidewhich isnotalwayseasy

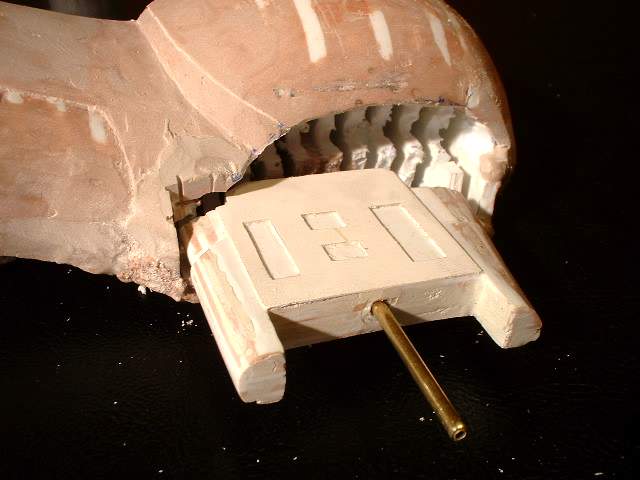

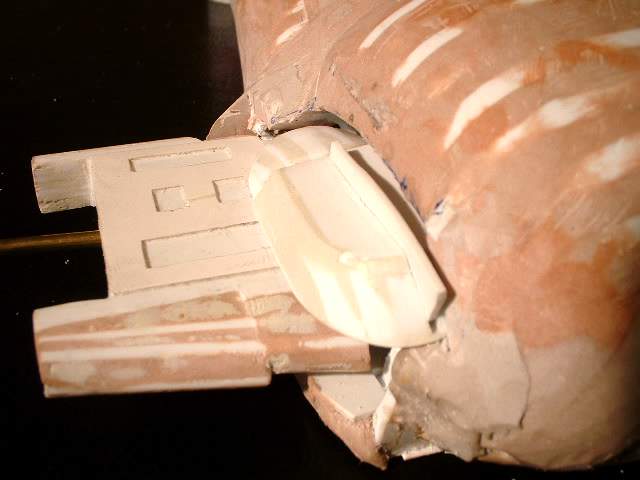

Shuttle test fitted to the body
Another view
