K9 Page 3 |

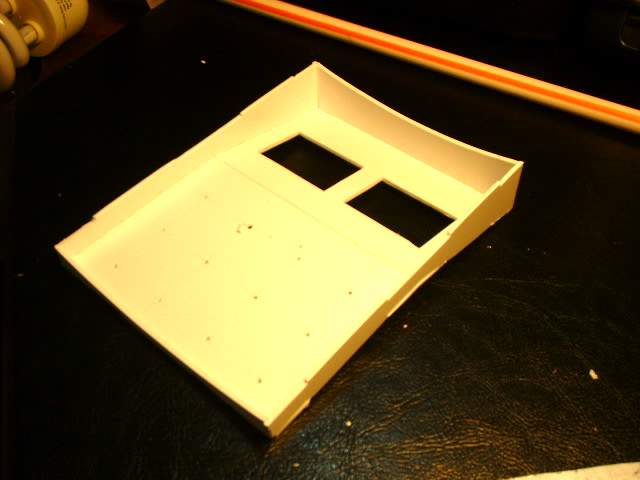

Control panel in thicker material. The button location are marked only by the holes |

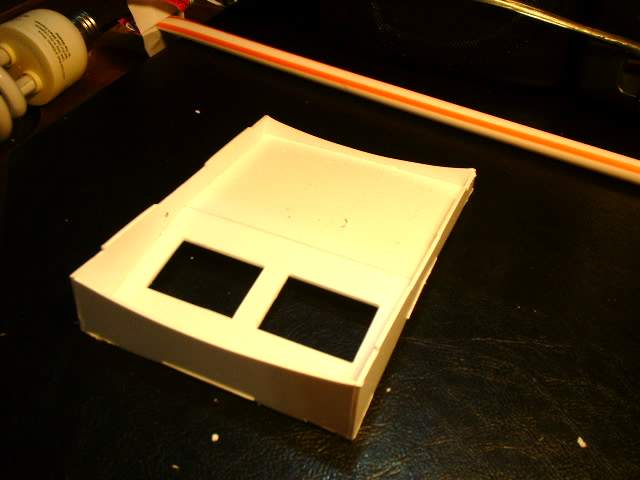

Back curved section |

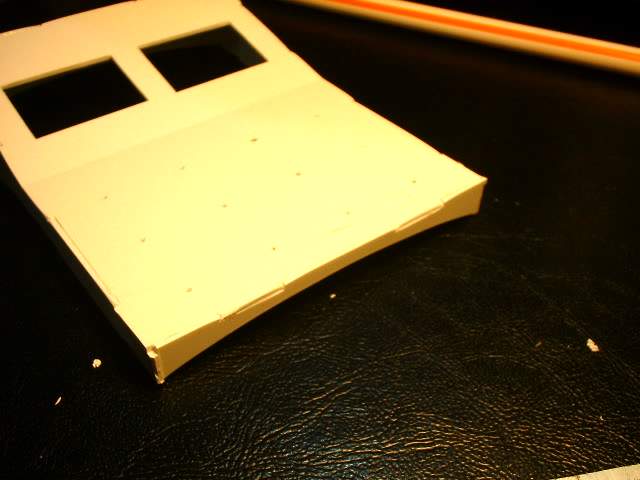

Front curved section |

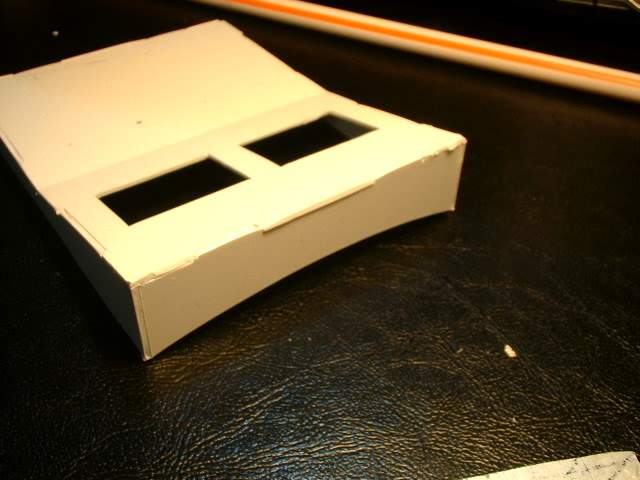

Back side |

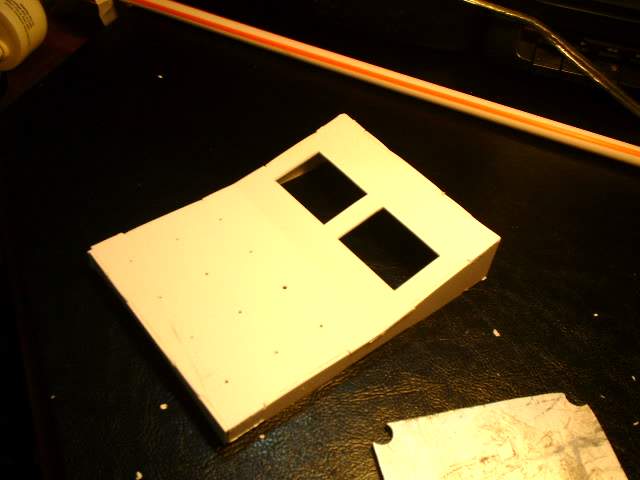

Second view |

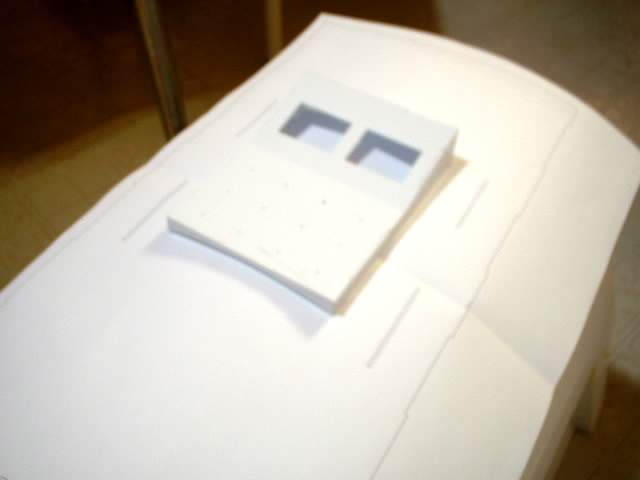

The control panel on the cutout template for the top piece. The holes do not line up as the control panel it too small. Somehow I printed the drawing in the wrong size or it is not drawn correctly. Back to the drawing to see where I went wrong. |
Edit: The drawings are right. The error occurred when I printed. I must have not printed 1:1 and it scaled to fit the paper size. Dang! |
