A&A Frame Assembly Page 8


Reverse view

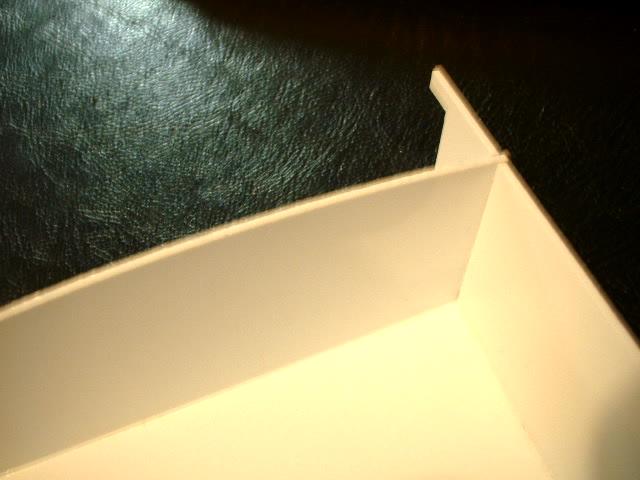

Close up of the inside. I have positioned the parts to make the inside corner neat and closed up


On the outside there are very slight gaps in the corner but since they are not seen it is fine

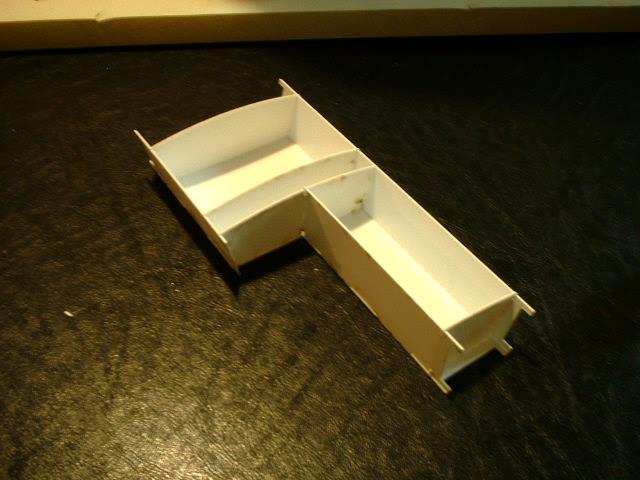

The completed unit

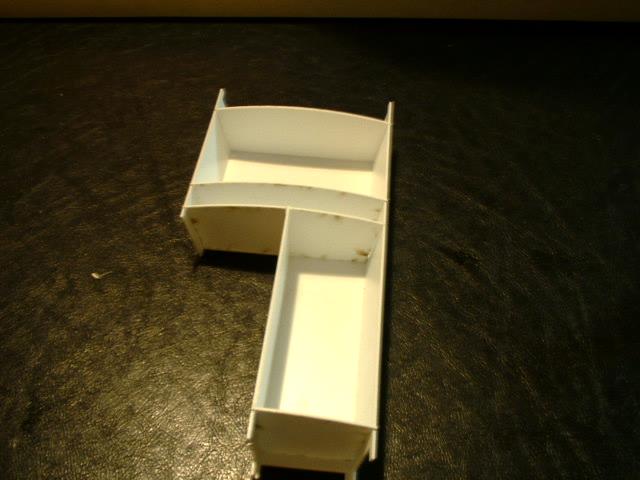

Another view

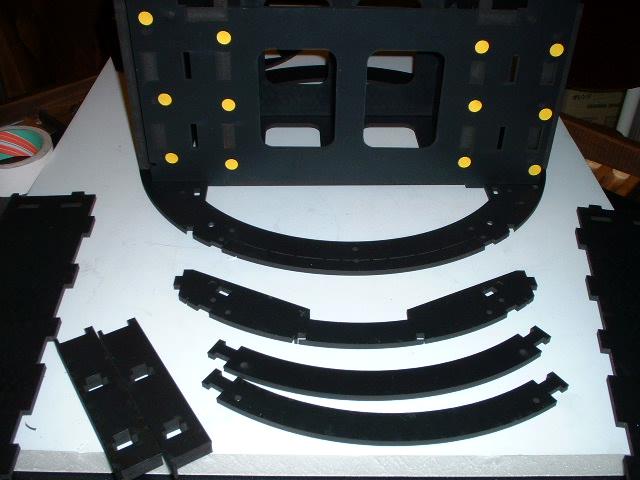

The pieces for the arm carrier. Note that this is a prototype and the production version assembles with some screws. There is 2 rectangular pieces that allow the two middle cross pieces to screw together outside the vertical supports


Here is the parts assembled as they would appear on a frame that it upright. Outside the 2 vertical pieces is 2 small rectangular pieces that the 2 upper cross pieces screw together with. If you have problems with this email me. It should be noted that the bottom piece is not handed and can go in either way.

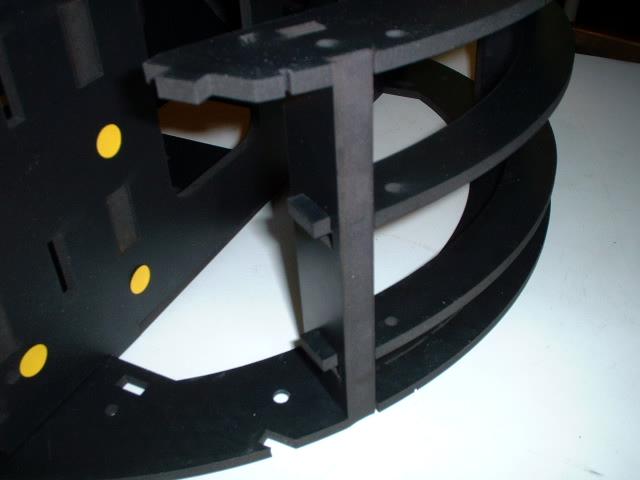

Here is the arm carrier mounted into the inverted frame


There is a notch in the frame for the part to slide in. There are holes in the top ring that can be used to screw the carrier to the ring however since the material is 0.25 inches thick instead of 0.5 inches thick caution should be used when drilling into the edge of the 0.25 inch material.

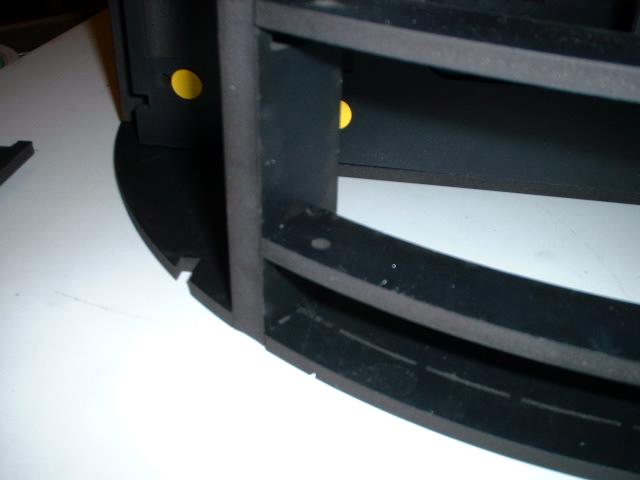

Here we see the edge
