A&A Frame Assembly Page 6


Here are all the pieces laid out ready to be assembled


Quickly the parts are glued together. Since the inside is the part that will be seen make sure it has the clean surfaces and that the corners are tight and look closed.


Here are the parts for the other boxes


There was an error in the file and a notch that was supposed to be there is missing. A quick cut with an Exacto blade will solve this


Lining up the part to be marked for cutting

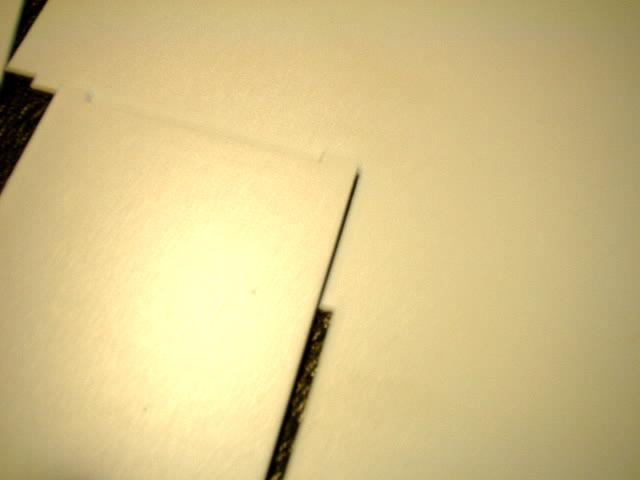

Slight scribed line with an exacto blade


A few second later the section is notched out


here we have just installed the newly notched piece and the top piece. Note there are 3 pieces that look the same but this top piece has a couple of more notches in it for this part


Another view

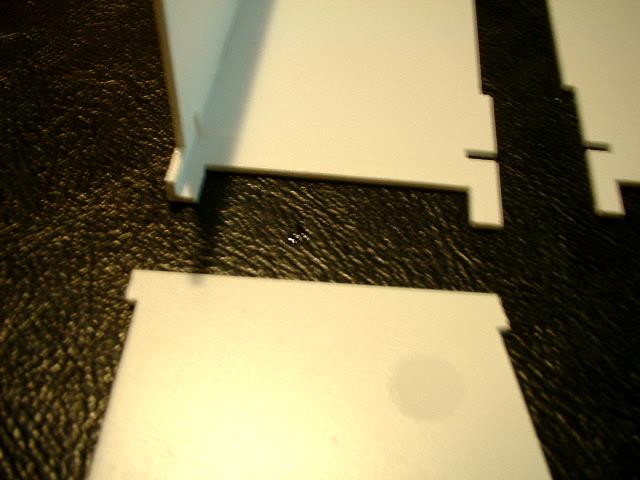

And the second part that has a slight error and has to be modified
