A&A Frame Assembly Page 4 |

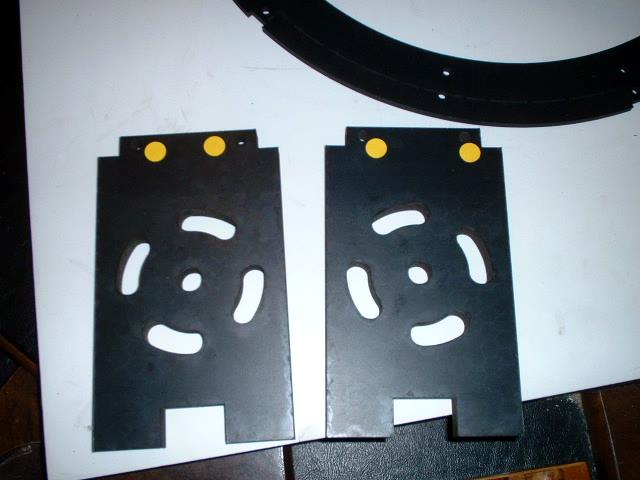

Close up of the holes marked to be countersunk |

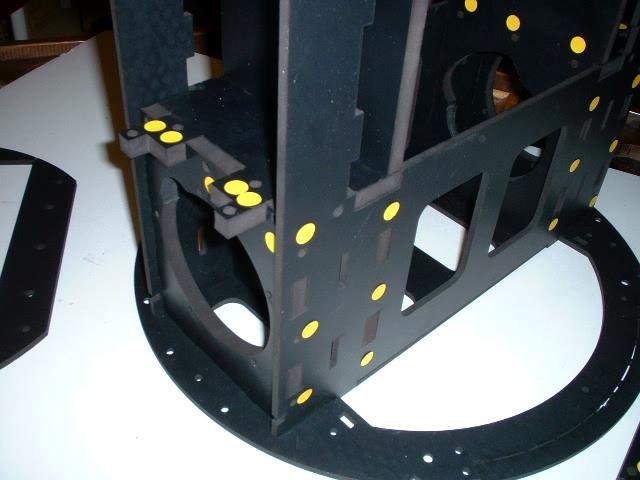

Another view |

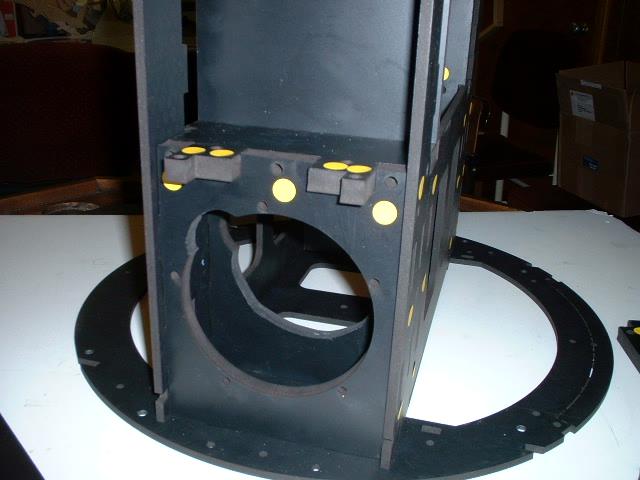

The right side. Repeat on the other plate |

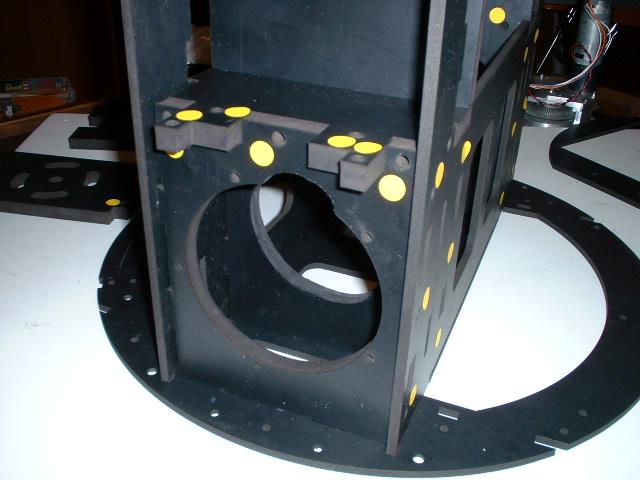

Overall view and the JAG stops |

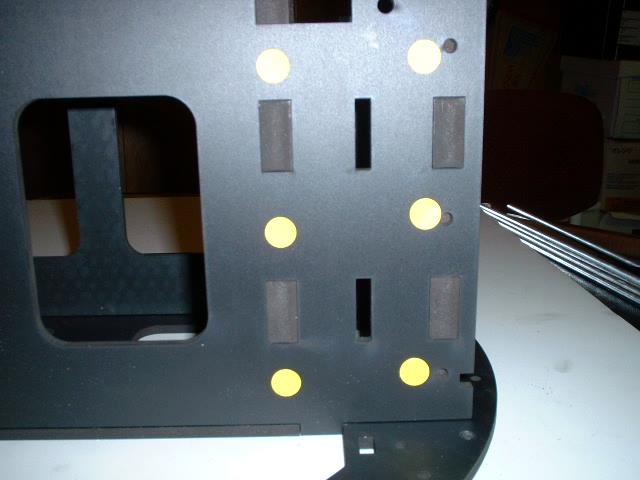

Close up of JAG stops. The holes are marked to be countersunk. Note that the parts are mirrors of each other |

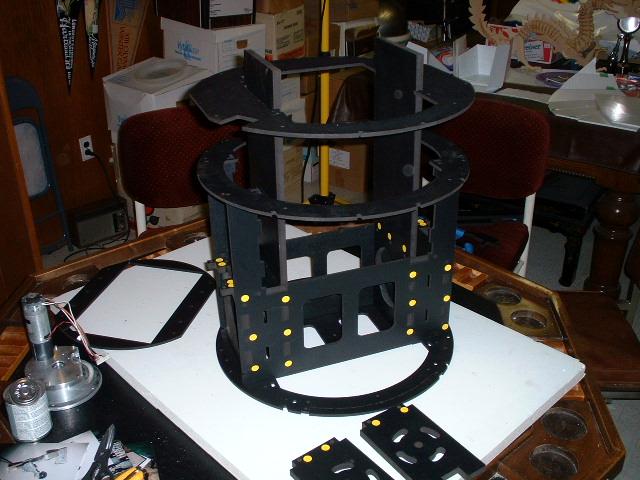

Here is a sort of walk around of the frame so far with the locations that need to be countersunk |
End view |
Inside |
