A&A Frame Assembly Page 3 |

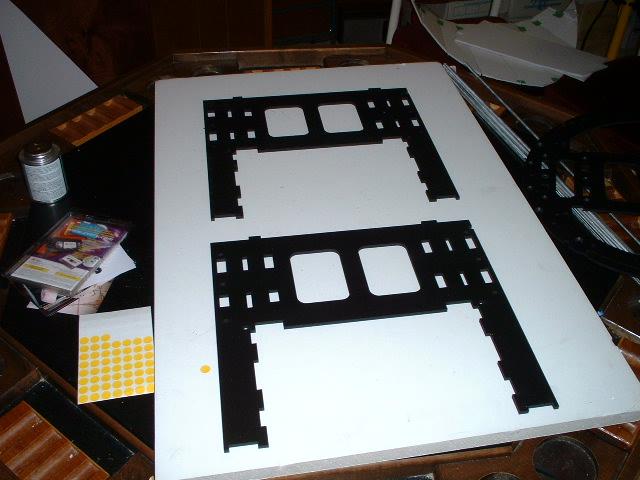

These are the front and rear plates |

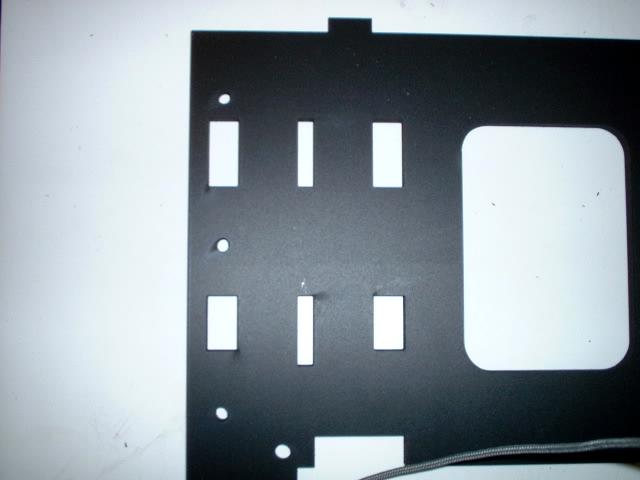

Again since this is a prototype there are a few holes missing from the production version. |

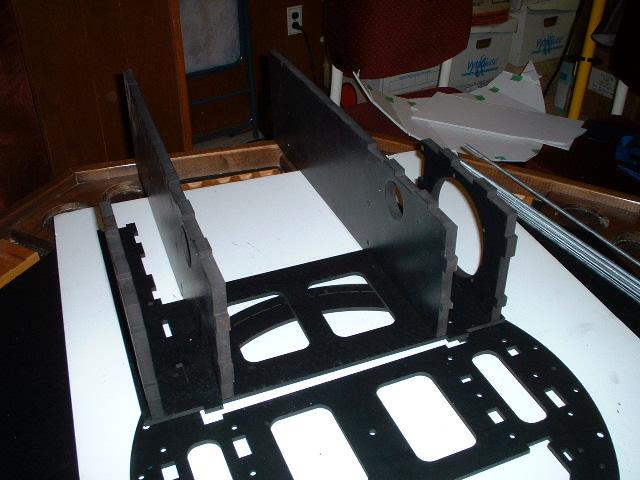

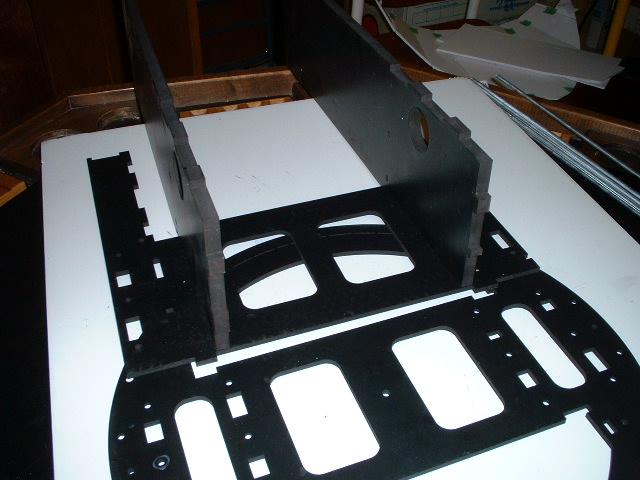

To figure out which side is the outside we will assemble a few parts. The parts are designed to only assemble in a particular way. First assemble the top ring along with the two vertical supports |

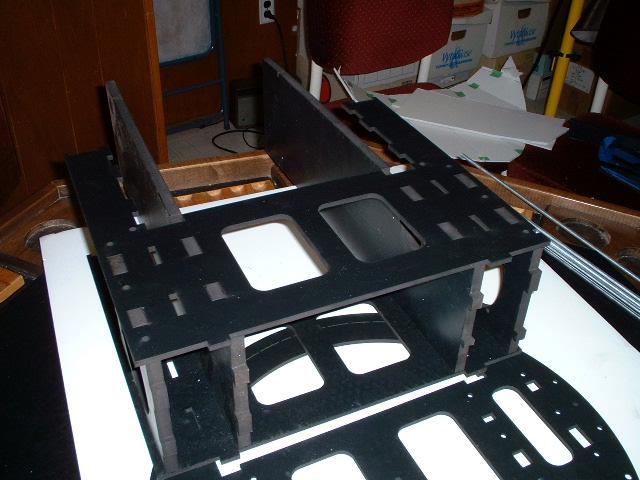

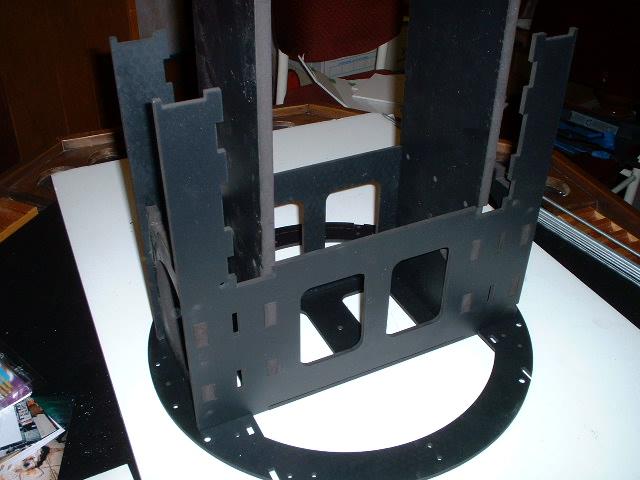

Next I turned the frame upside own and then placed one of the plates into the frame |

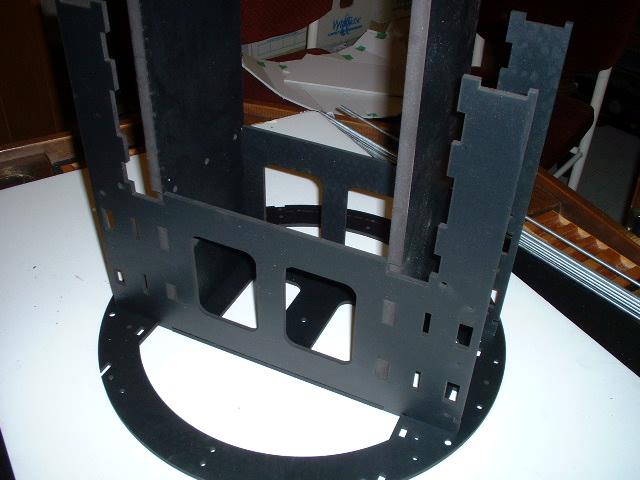

Next is the other plate. Again it can go in only one way |
We now remove one side of the plate and lay it down to install the motor mounts |
Motor mounts installed |
Plate put back on |

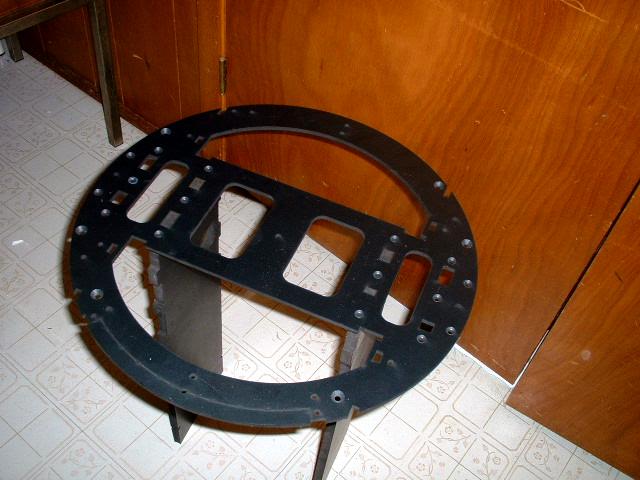

Then the entire assembly put back on ring |

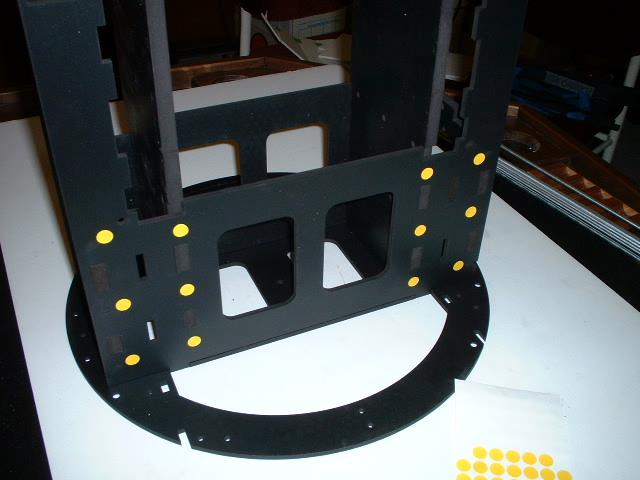

All the holes are then marked to be countersunk |
