 aaf170.jpg And here is the parts if they would be installed incorectly. The notches are slightly longer than the bracket |

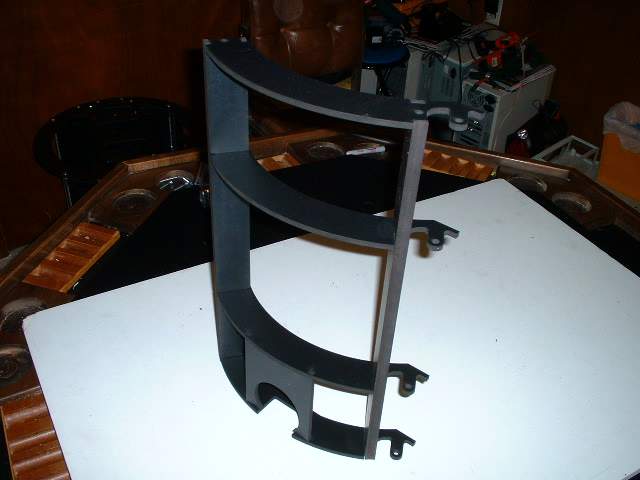

 aaf171.jpg Door all done |
 aaf172.jpg Ready ot go in. |
 aaf173.jpg Another view |
 aaf174.jpg I noticed that if I tried to install the frame with my 1 inch long machine screws that the coupler would get in the way of the hinges. Whatg I did was use a couple of 2-1/2 inch long machine scews. This provides plenty of clearance for the coupler. Of course this meant I had to shorten the rod I had. Here is the longer machine bolt installed |
 aaf175.jpg The door installe dand the coupler. Notice that on the next hinge I have a coupe of nuts above and below the hinge. This does not squeeze the hinge but only makes sure it is positioned properly. I should put some loctite there to keep the hinge from moving. |
 aaf176.jpg Close up |
 aaf177.jpg 3rd hinge |

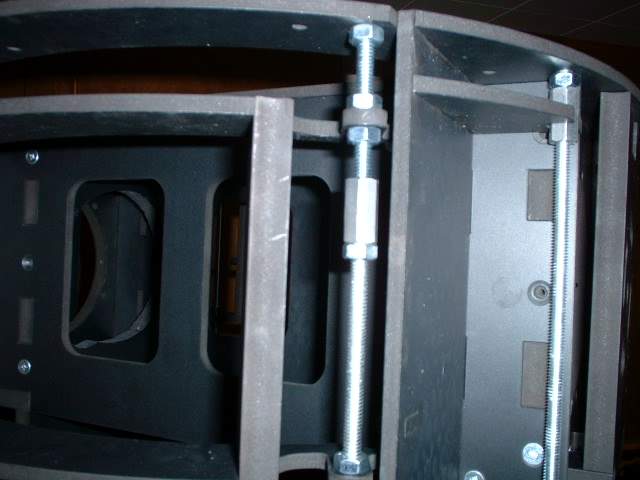

 aaf178.jpg The top of the hinge |

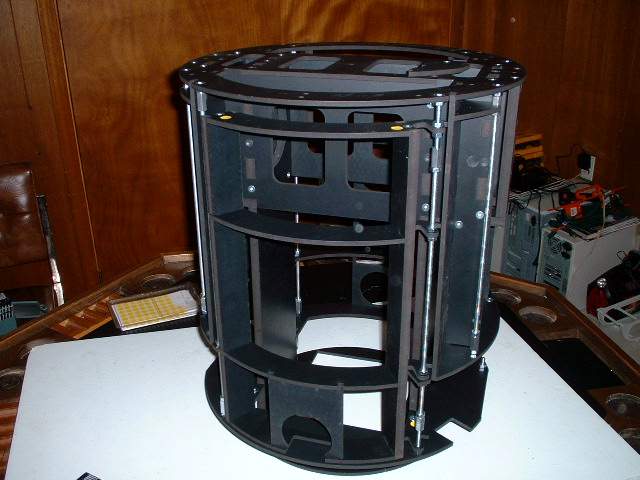

 aaf179.jpg All done |
