 aaf150.jpg Overall view with most of the rods installed. I have installed the rod for teh door hinge for now but will take it out later to put the door in. |

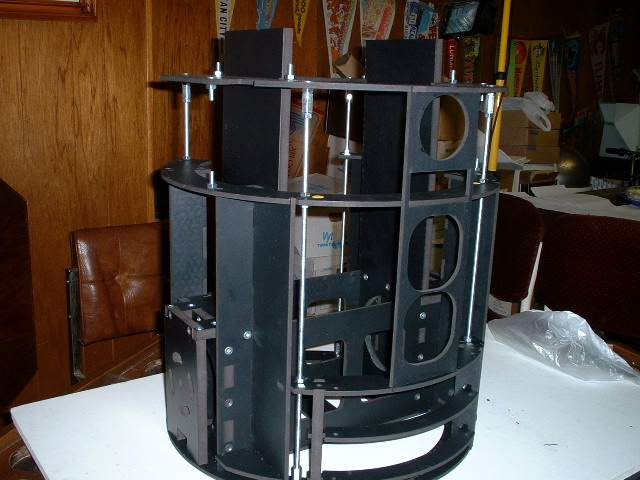

 aaf151.jpg Another view |

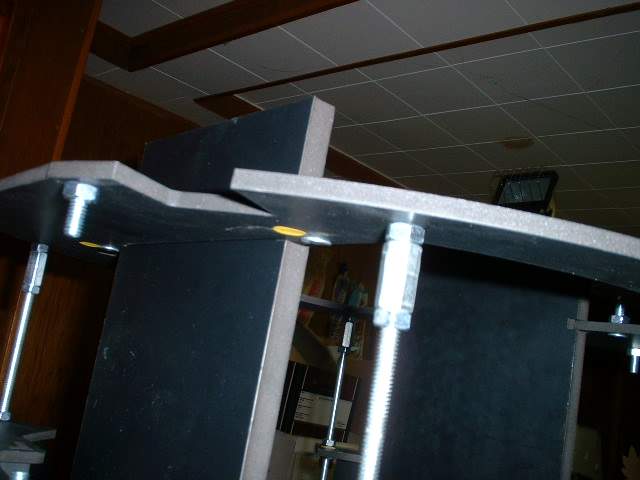

 aaf152.jpg Close up of the top (actually bottom but frame is upsidedown) of the frame and the nuts holding the coupler tight. |
 aaf153.jpg Here is the bottom of the body to the bottom of the skirt. I used a 1 inch machine bolt and a cut down 2-1/2 machine bolt. This was easier instead of using two of teh 1 inch long bolts and a short middle piece. |

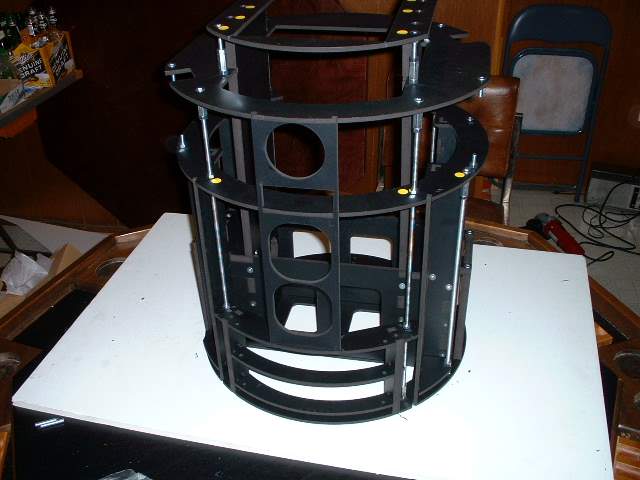

 aaf154.jpg Walk around of the frame. You will notice a few areas where the rods are not completed but you will see the machine bolts facing each other and a gap. I ran out of couplers and will need to get some more. |
 aaf155.jpg |
 aaf156.jpg |
 aaf157.jpg |
 aaf158.jpg |
 aaf159.jpg |
