 aaf130.jpg Over all view of the frame with boxes installed |

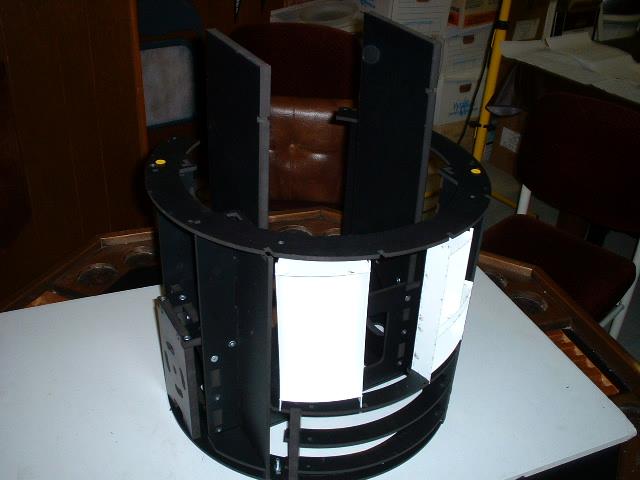

 aaf131.jpg The middle ring is installed. The notches in the boxes determine the orientation of the middle ring. Again this ring is slightly different from the production version. |
 aaf132.jpg Next the center vents and power coupling mounting bracket has to be inserted before the bottom ring is installed. |
 aaf133.jpg The bottom ring sandwiches the bracket. The boxes removed for clarity |

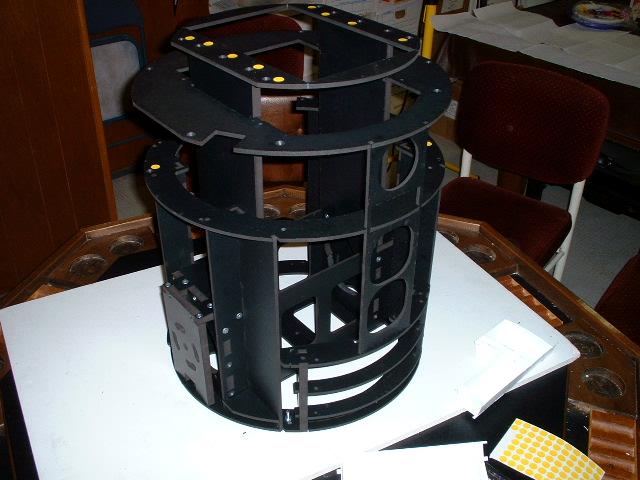

 aaf134.jpg The bottom skirt ring installed |
