A&A Frame Quick Disconnect Idea


Brainstorming for a Quick Disconnect idea for the A&A frame.

Front cross section partial view of the A&A frame

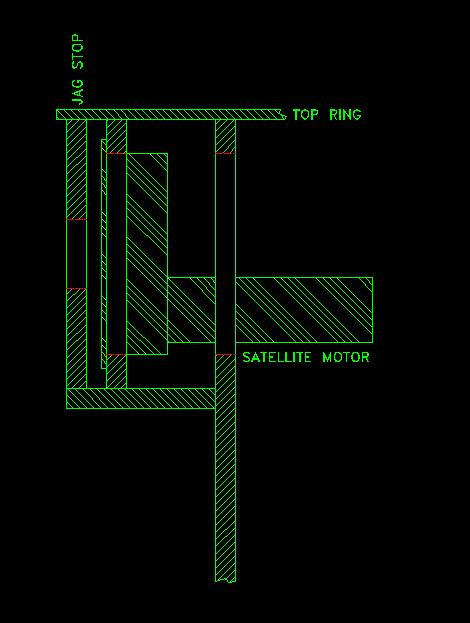

Exisitng frame layout with Satellite motor

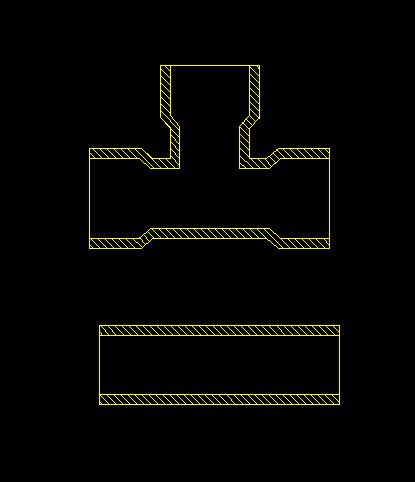

Buy PVC pipe and a fitting (Tee shown here)

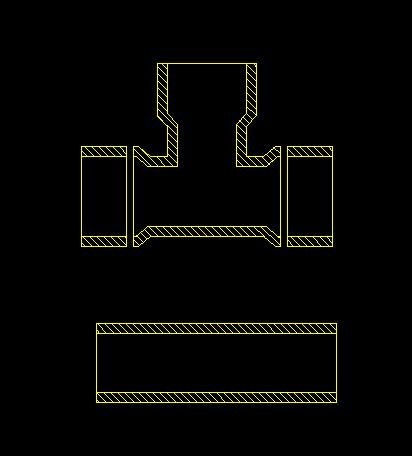

Cut off the expanded ends of the fitting

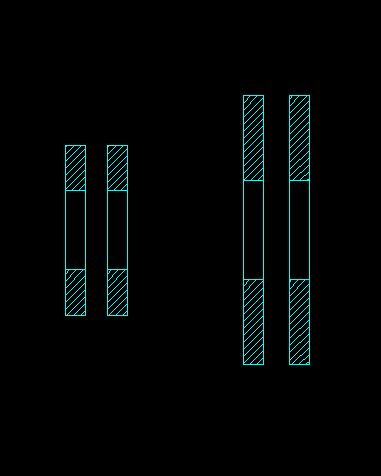

New laser cut parts for the quick disconnect system

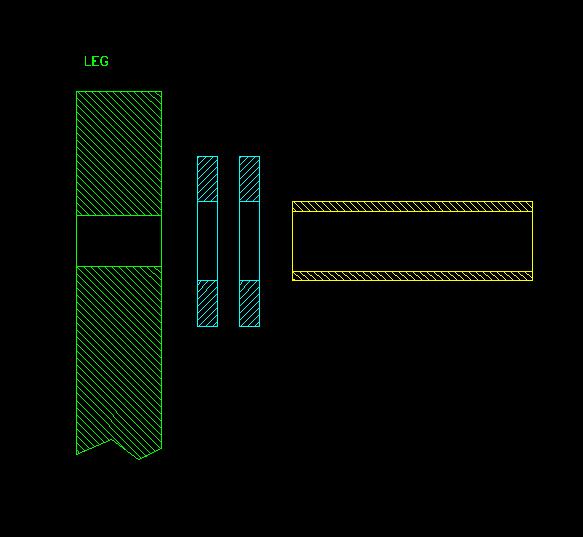

PVC pipe and new parts for the leg

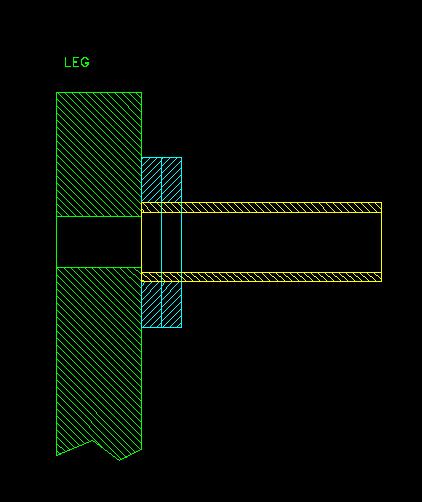

Glue and screw the PVC pipe to teh new parts and then glue and screw this assembly to the leg

Cut off fitting parts and new laser cut parts

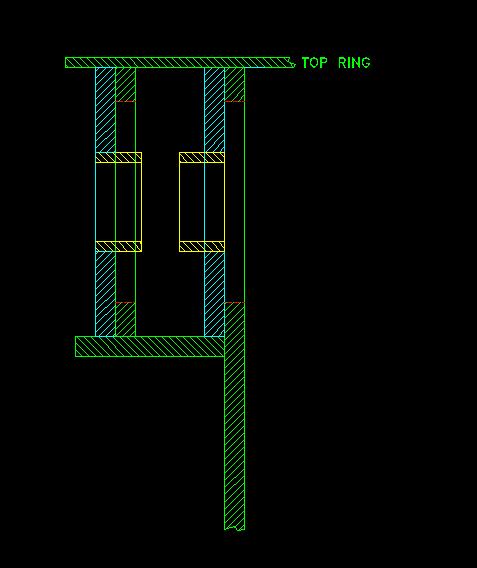

Glue and screw the newparts to the A&A frame

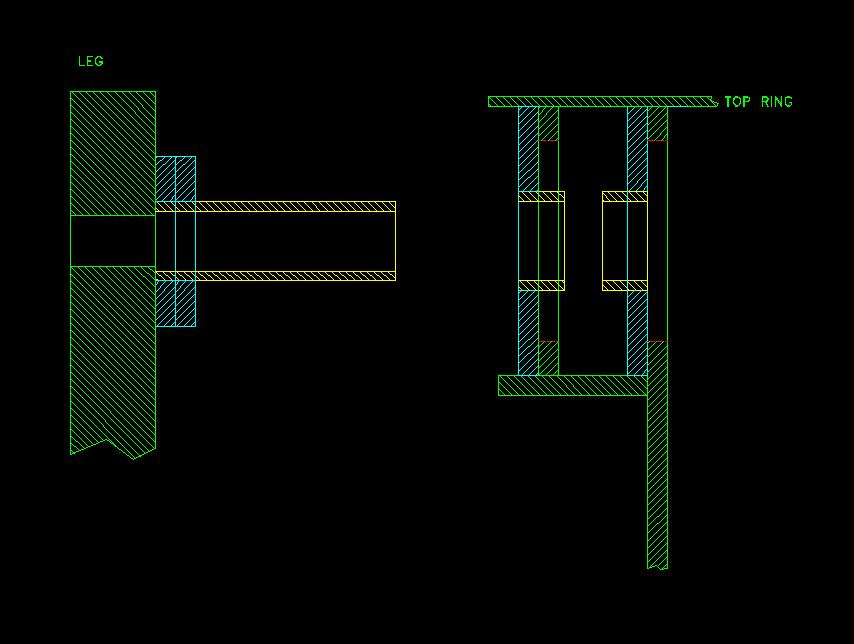

Modifed Leg and frame

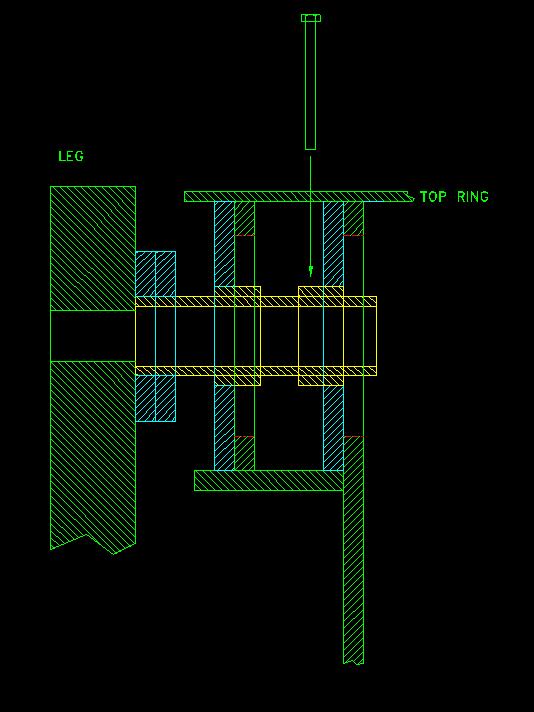

The PVC pipe slides through the cut PVC fitting parts. A bolt is used to secure the leg to the frame
