H&K Budget Aluminum
Foot Shells - Oct 12 2005
These are the budget foot shells that Heath and Kelly supplied to the group. They were offered in 3 forms: Formed and welded up, formed and tack welded, and unformed. These sets I got are the formed ones without welding. They have been tack welded together and are quite strong. I plan to either JB weld the seams or braze them together. They are well put together and kudos to them for a great job.

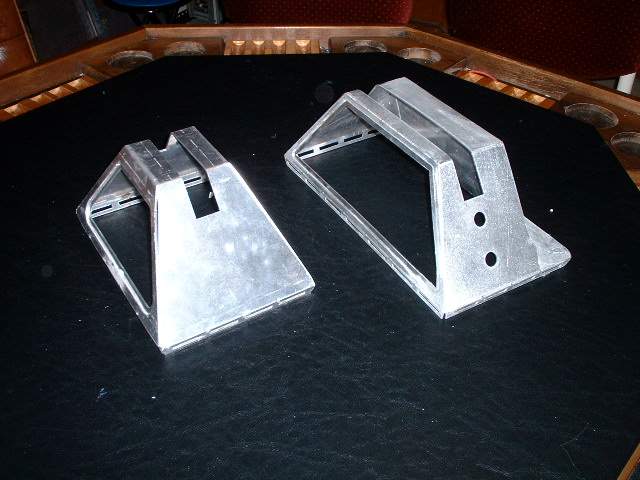

Overall 3/4 view (L-R)middle foot and side foot shell

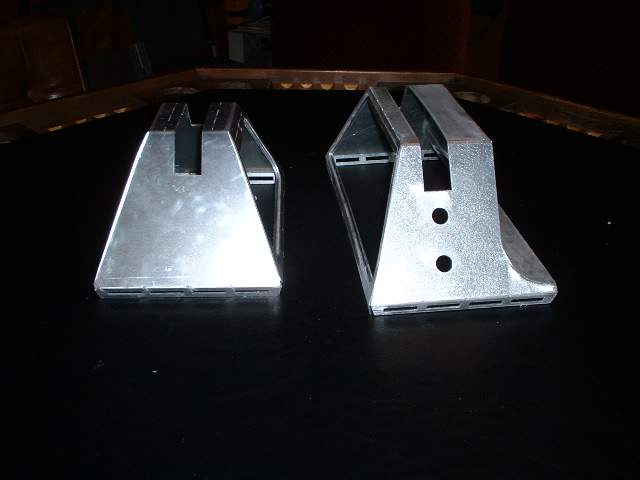

Front view

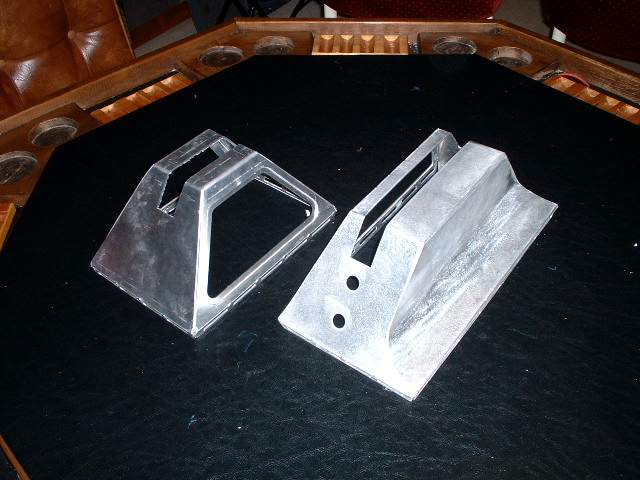

3/4 view other side. The plates have not been installed that is why the holes are there. They are included in the kit but not in the picture
Another view trying to show the slots

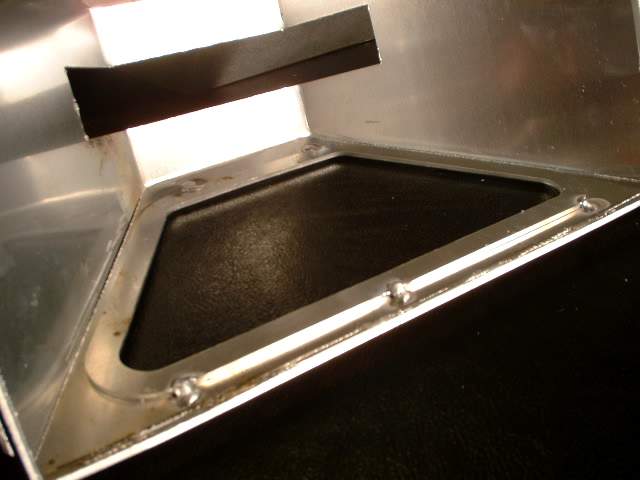

Close up of the inside part tack welded together
Another photo

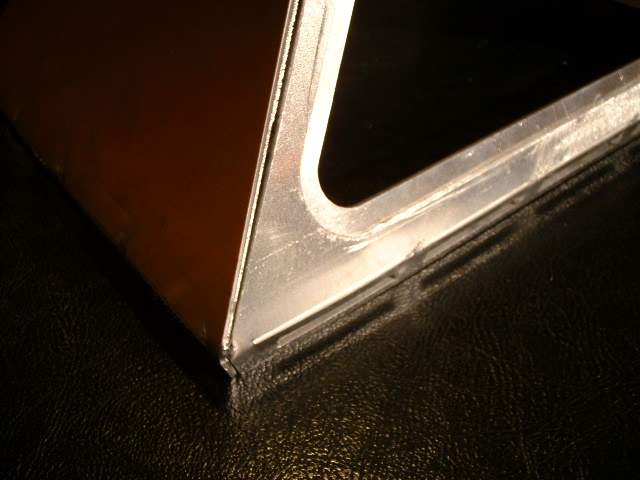

Outside corner. Parts are nicely butted up to each other. Very good quality

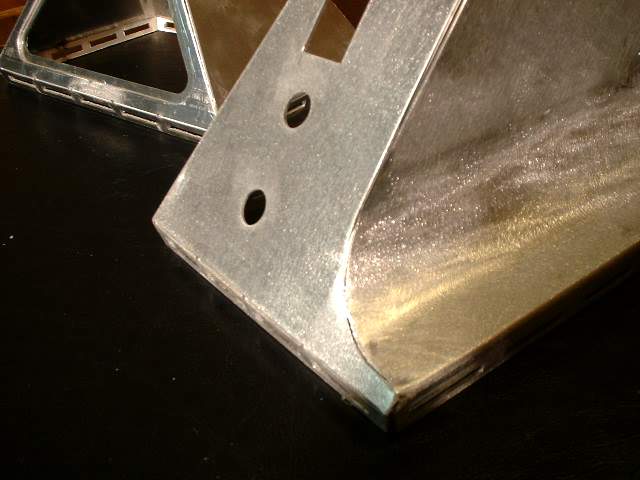

The curve where the battery box goes. They have made sure it is clean here. I have not had a chance to check the radius as there were problems before

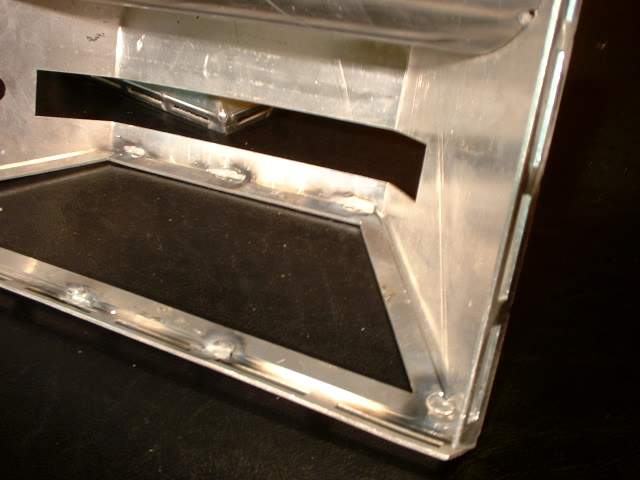

Another inside view of the tack welding
