A&A Tray Assembly


I have glued the main leg section in pairs so teh 3 top parts are 0.50 thick


Now everything is joined to give me a 0.50 in thick leg main support

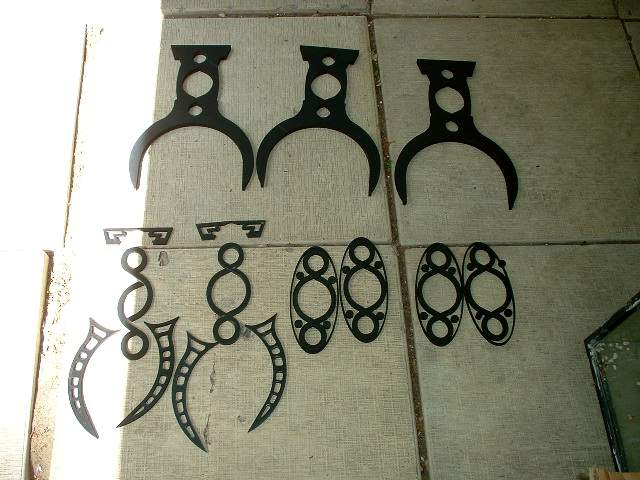

These are all the part for ONE side of the leg. References show detail on both sides but it was unclear if this is a mirror of the outside. We have provided the parts to put the detail on both sides but again this is something the builder can add or not.


Close up of the parts to be glued together


The outer oval is joined (0.50 thick)


e inner ovals are joined (0.50 thick)


ll 3 sets of ovals are joined (0.75 thick)


The little circles are joined (0.5 thick)


The inner ovals are glued to the main legs. This was chosen first as lining these parts up is easiest this way


Next the outer oval is glued in
