A&A Tray Assembly





Again but at a different angle





Now with all the parts loosely joined together

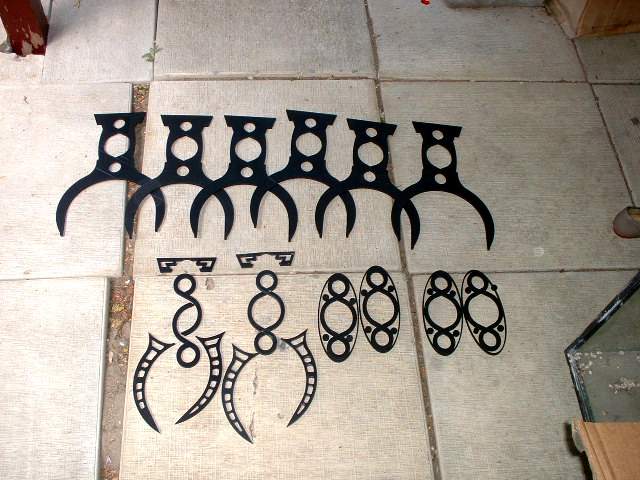

Next are the legs. These are all the 0.25 in thick parts. Those with 0.50 thick parts will have less. Note that the legs are quite thick as seen in the movie. However the builder can alter the thickness if desired by changing the number of parts sandwiched together


Photo with all the excess parts removed
