A&A Tray Assembly |
Note that the furthest left and right parts are mirrors of each other. This is important for when you glue on the top lip |
These are the 3 parts that will be glued together. Make sure the top and bottom parts have the holes in the same location |
Close up of the tray part where you need the outer ring and the small rings that will be used as standoffs |
The standoffs. We need 2 per hole |

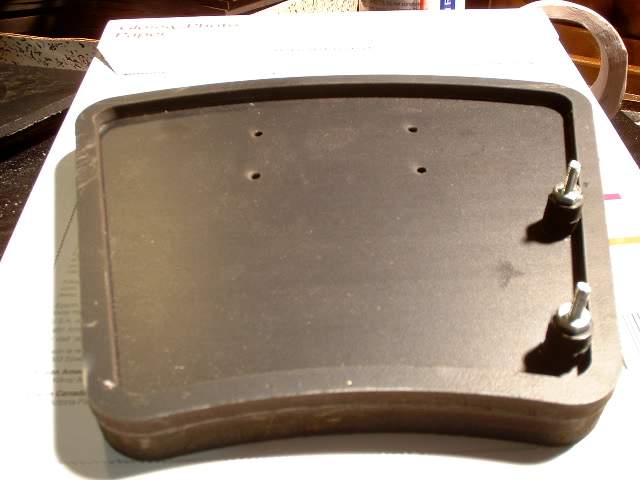

The furthest left tray glues together. I have used bolts to hold the parts together as the glue dries. There is one of these |
This part is an upper tray and it does not get standoffs. There are 3 sets of these |
e lower trays. There are 2 sets of these |
The furthest right tray. There is one of these |
The trays parts all lines up as they will be assembled |
Close up of the parts from left to right |
