Drive Wheel

This is a quick tutorial on how I converted a caster into a drive wheel for my feet kits.

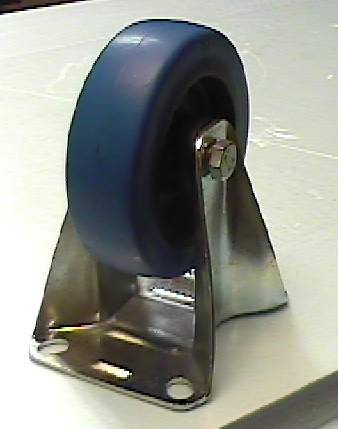

Here is a caster that I purchased at a surplus store. A blue rubber wheel for R2. Perfect. Later on you will see what is needed to convert this into a drive wheel


You will need a tap. In this case I am using 1/4-20 set screws so I need a tap this size.

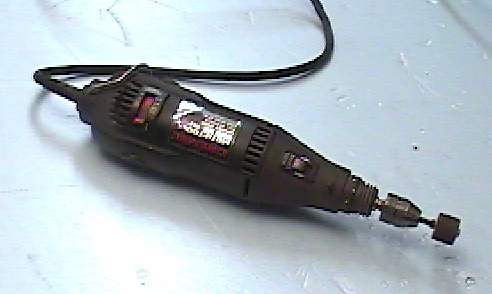

Here is the weapon of choice for an R2 Builder. The Dremel tool. On the end I have a sanding drum

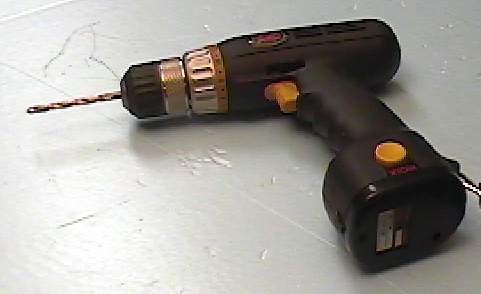

You will also need a drill with a 7/32 drill bit. This is the recommended size for the 1/4-20 tap.


Not necessary but helpful is a measuring tool. Here is a dial caliper.

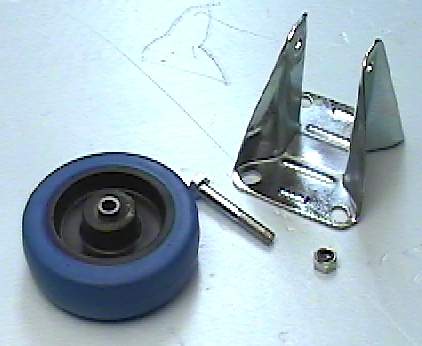

Here is the caster with the bolt taken off.

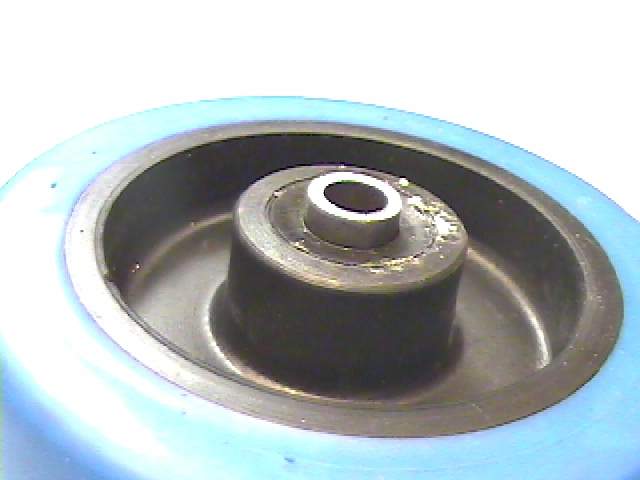

A super close up of the hub area. I chose this caster because there is material in the hub area where I can drill, tap and put in a set screw.

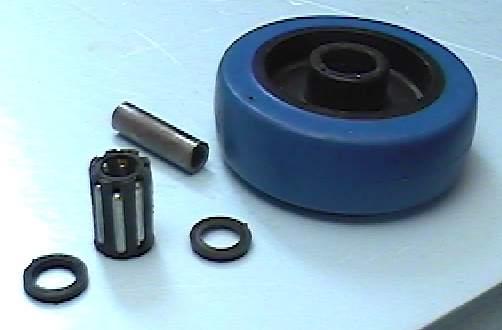

The bearing inside just pops out.

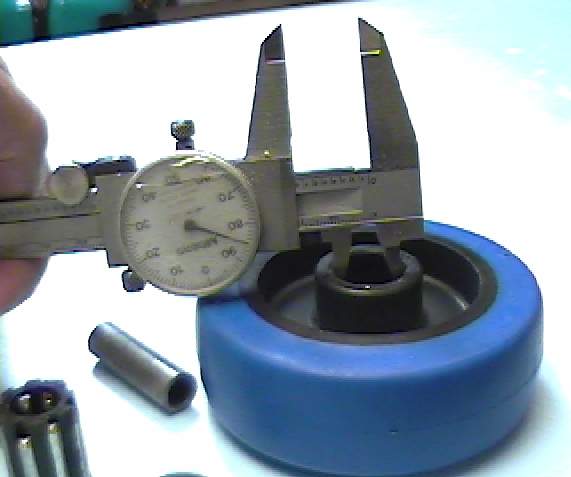

The area inside the hub measures over 0.750 inches which is what my drive shaft is. No worries as I will use a thin brass sheet to build it up to the 0.750 in dia I need

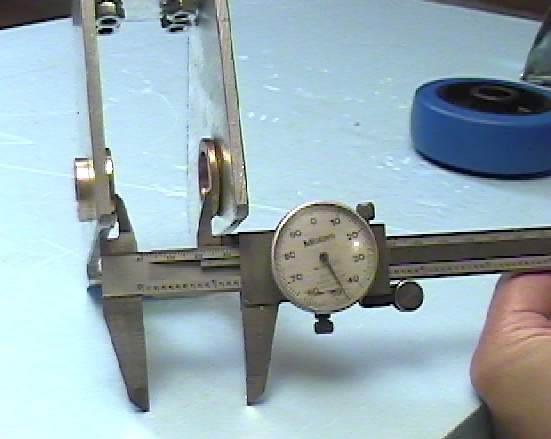

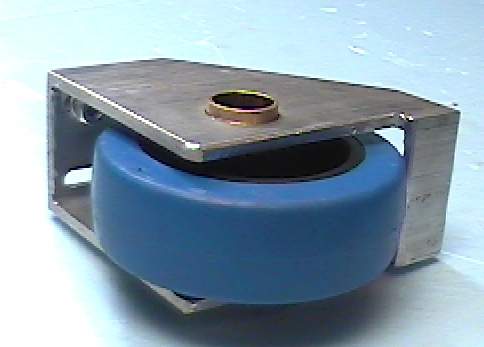

Now I measure the inside of the wheel bracket. The wheel will have to fit in here.

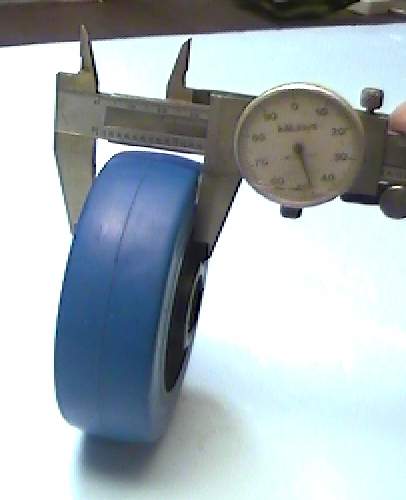

Doh! The width of the wheel at the hub area is larger than inside the wheel bracket.

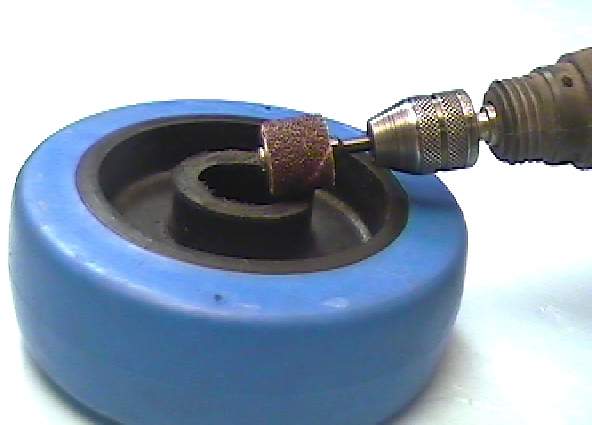

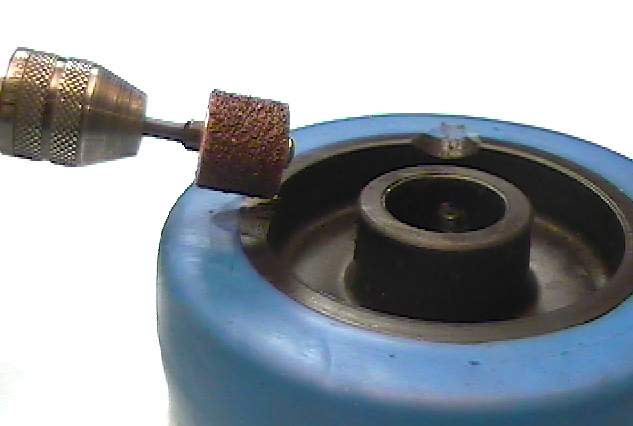

The R2 Builders tool to the rescue. I grind down one side until it fits the wheel bracket.


I check every so often until the wheel fits in.


Next I notch the wheel 90 degrees to each other. I have made 2 notches for 2 set screws. You can do as many as you want but I suggest the minimum be 2.

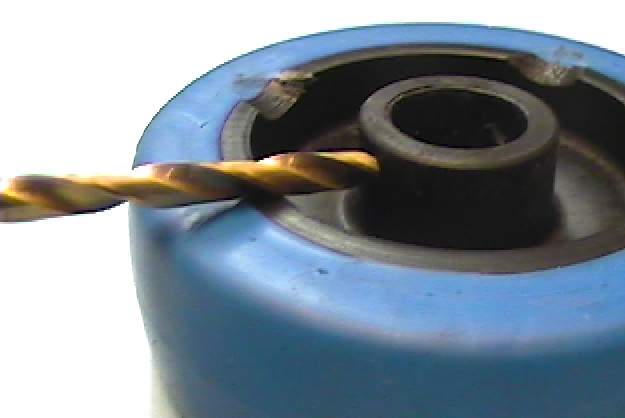

If I didn't notch the wheel sides the closest I can get with the drill bit does not leave much material above the drill bit and this can be a weak point that may break.

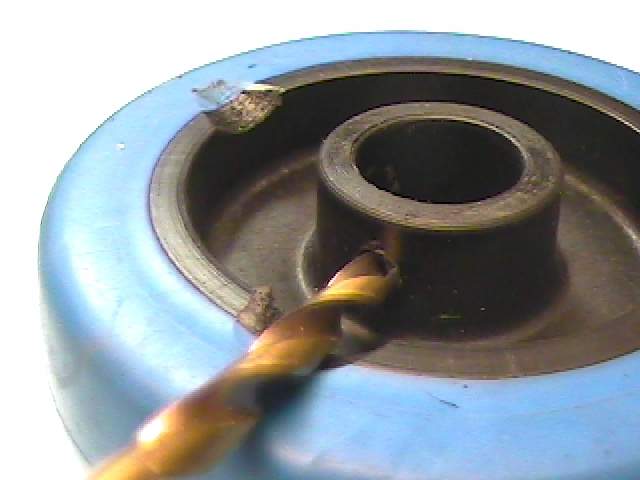

Compared to the picture before there is more material above the drill bit.

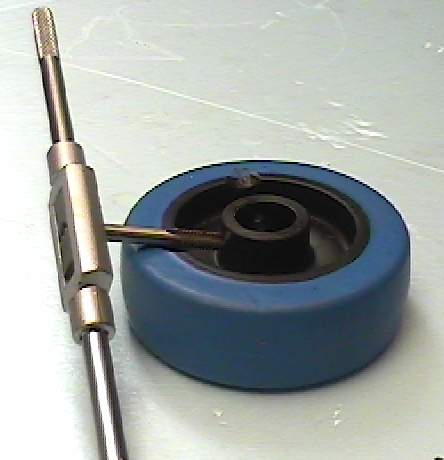

Next we tap the hole to the desired thread.

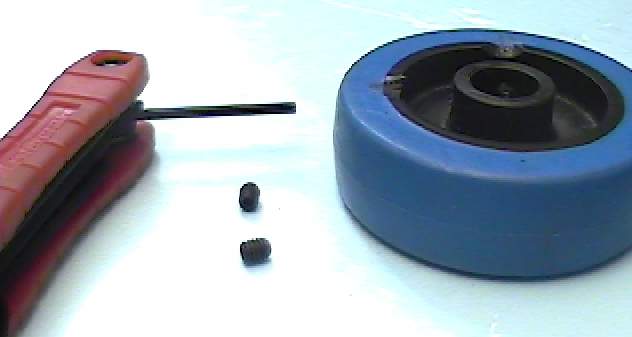

Here is the Allen key and the set screws


The set screws are carefully inserted. Do not force the set screws as the hub is a soft material and you do not want to damage the material

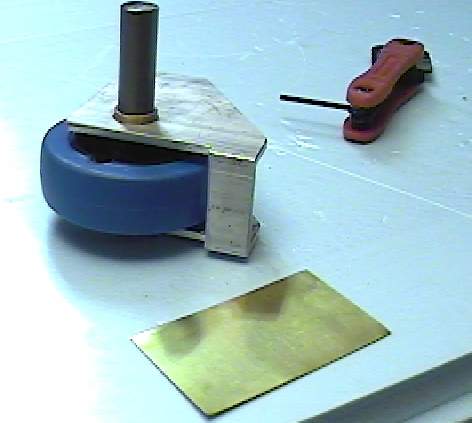

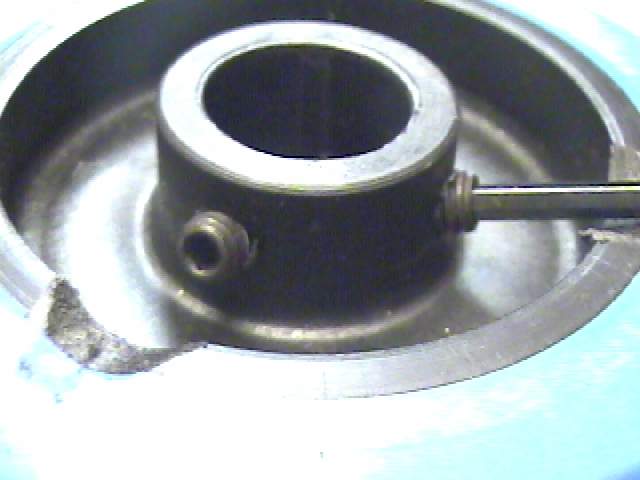

Here is the shaft installed through the wheel. I have used sheet brass to give the shaft and wheel a tight fit. If it was loose the wheel may not rotate properly.

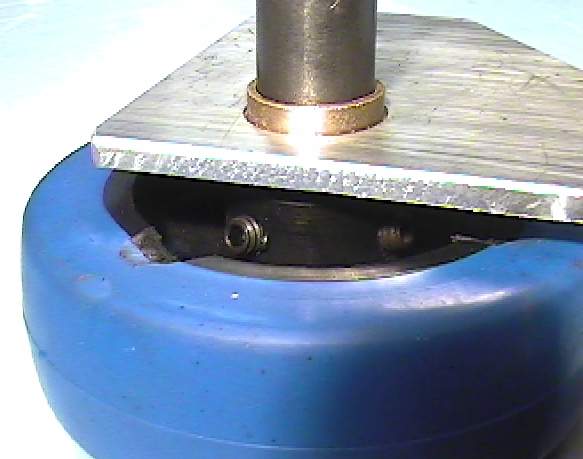

When tightening the set screws do not use excessive force or you may damage the wheel hub.
